Rear Window: Removal/Installation
- Remove the rear window wiper arm (see WIPER ARM REPLACEMENT
).
- Open the tailgate, and remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA
).

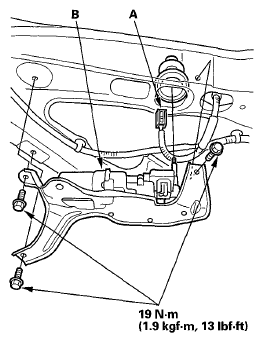

- Disconnect the 4P connector (A) from the rear window wiper motor (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the three bolts and the rear window wiper motor.
- Install in the reverse order of removal, and note these items:
- Grease the moving parts.
- Before reinstalling the wiper arm, turn the rear window wiper switch ON, then OFF to return the wiper shaft to the park position.
- Check the wiper motor operation.
