Fit Base, Automatic Trans
›
Repair and Diagnosis
›
Body & Frame
›
Mirrors
›
Power Mirrors
›
Circuit Diagram
Circuit Diagram

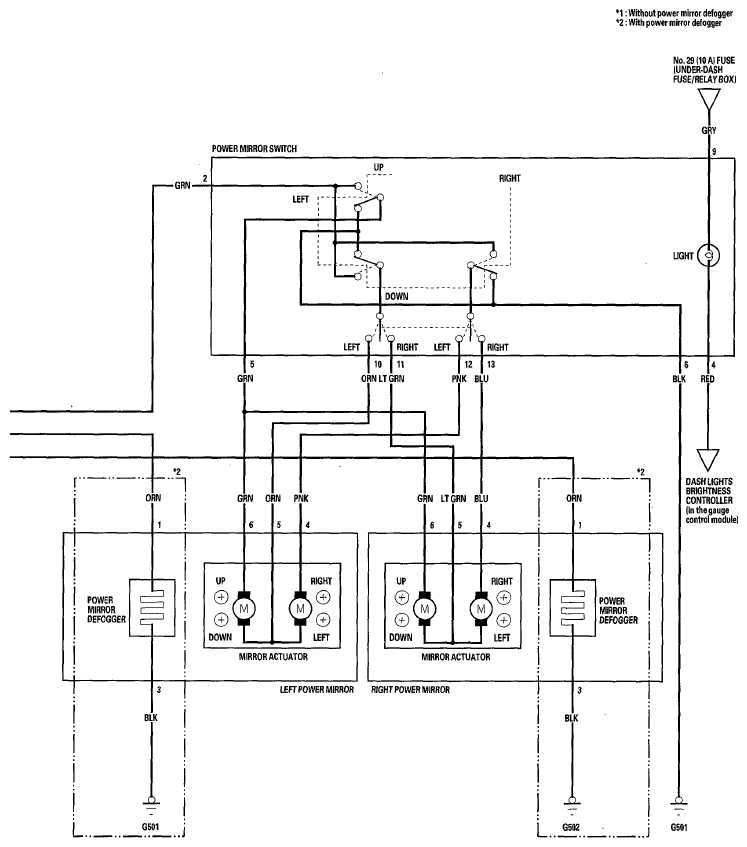

Fig 1: Identifying Power Mirrors - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

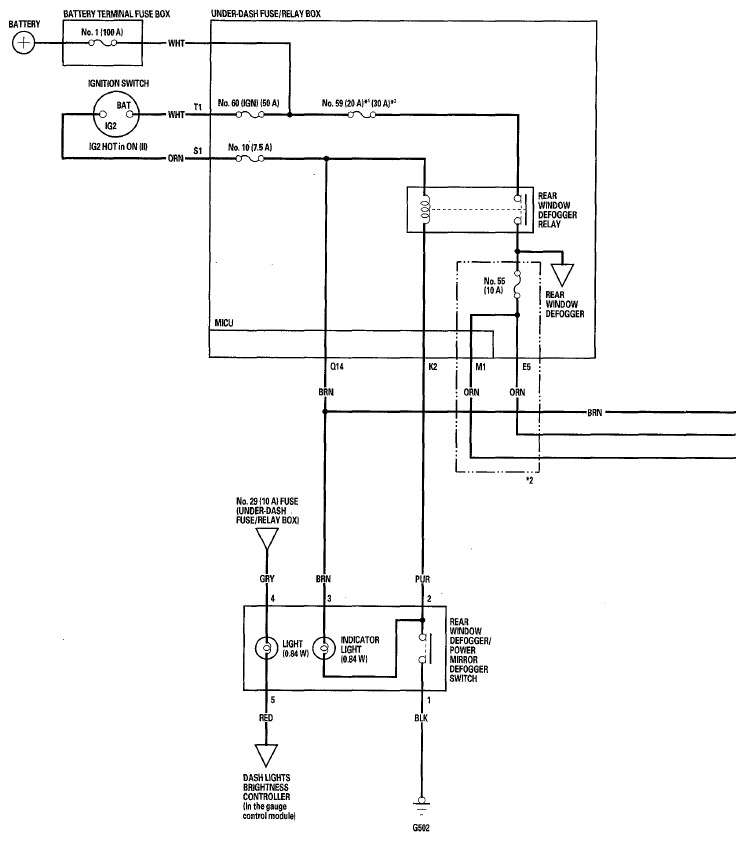

Fig 2: Identifying Power Mirrors - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
