Fit Base, Automatic Trans
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Abs (Anti-Lock Brake System)
›
Circuit Diagram
Circuit Diagram

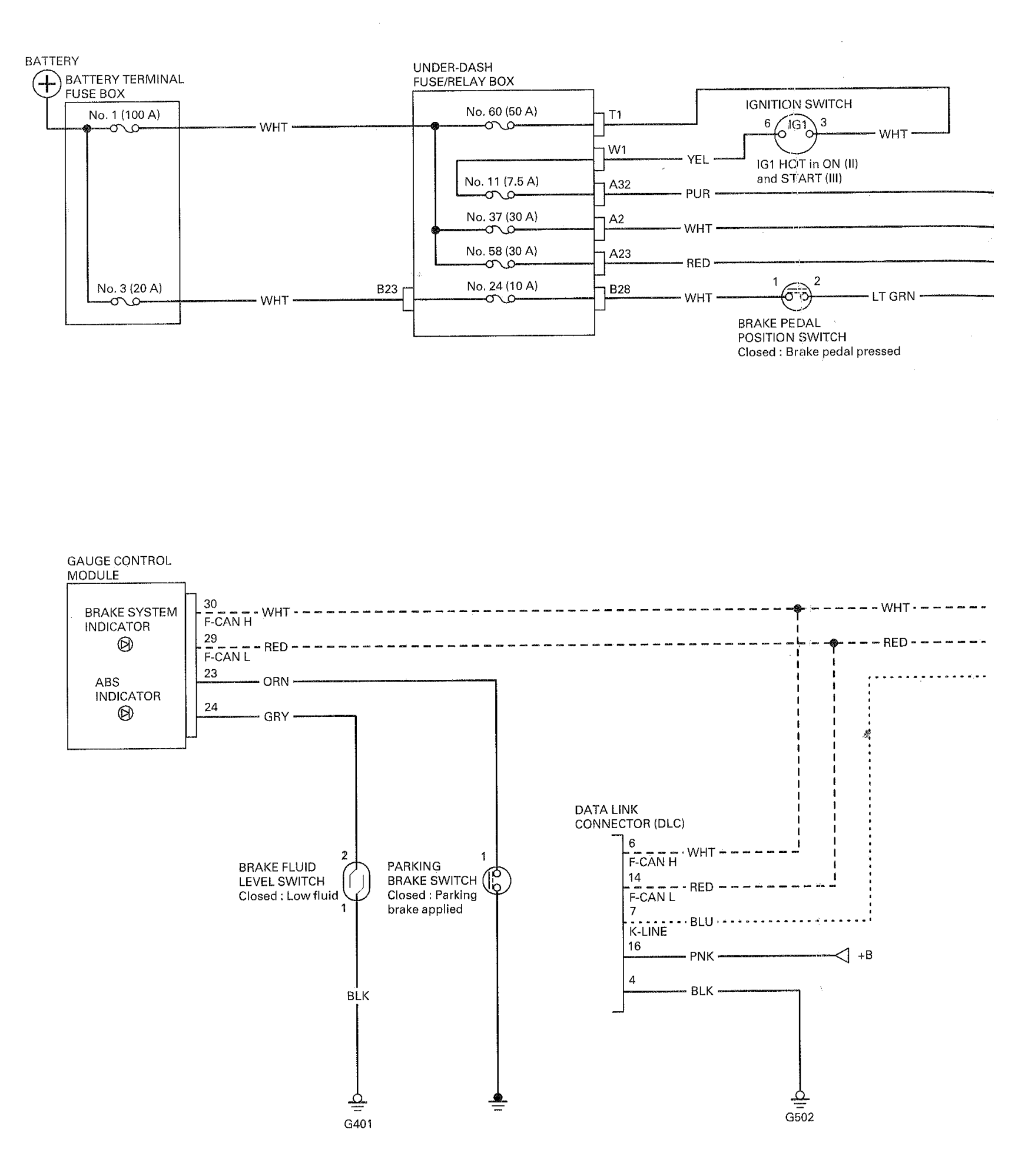

Fig 1: Identifying ABS Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

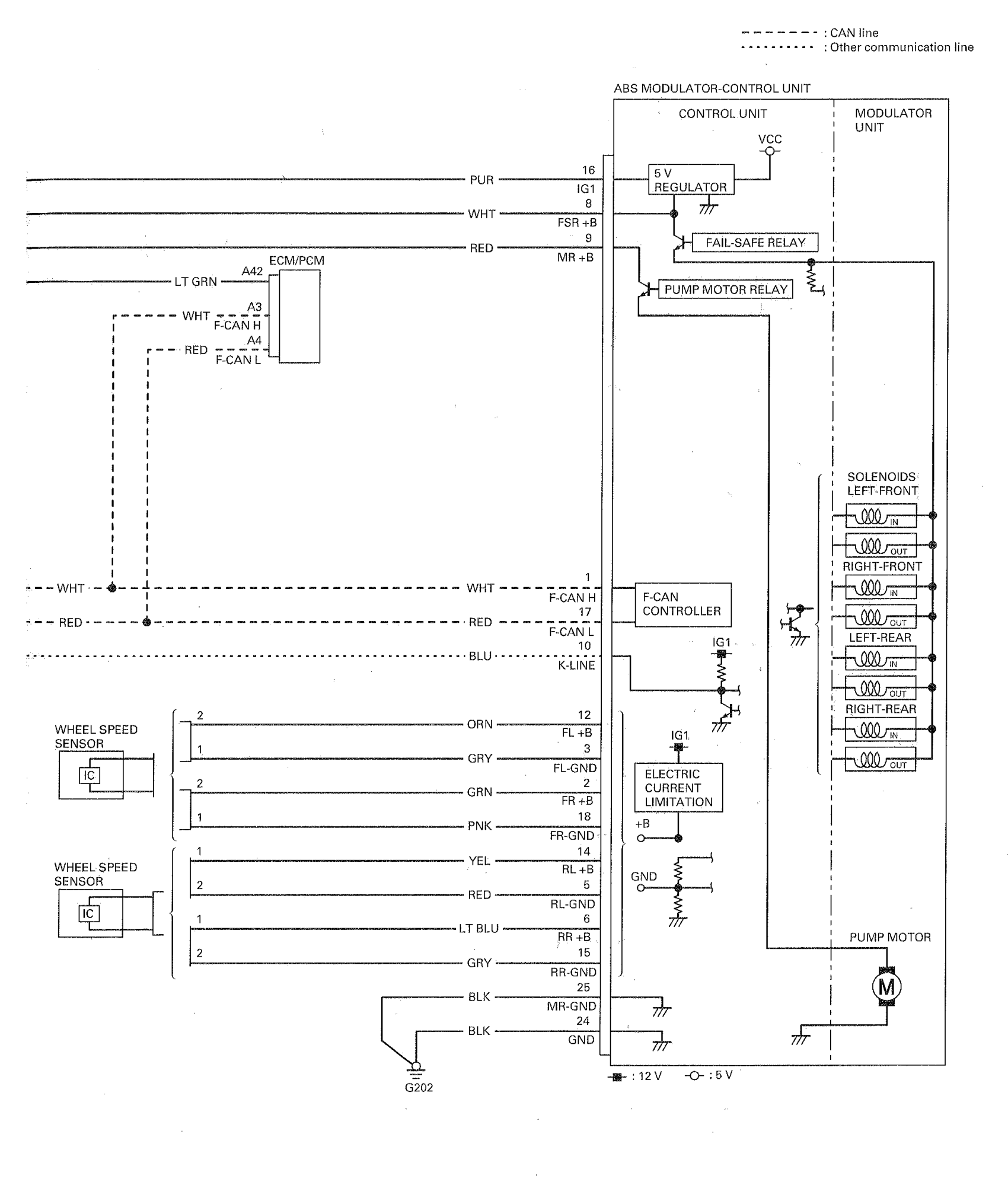

Fig 2: Identifying ABS Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

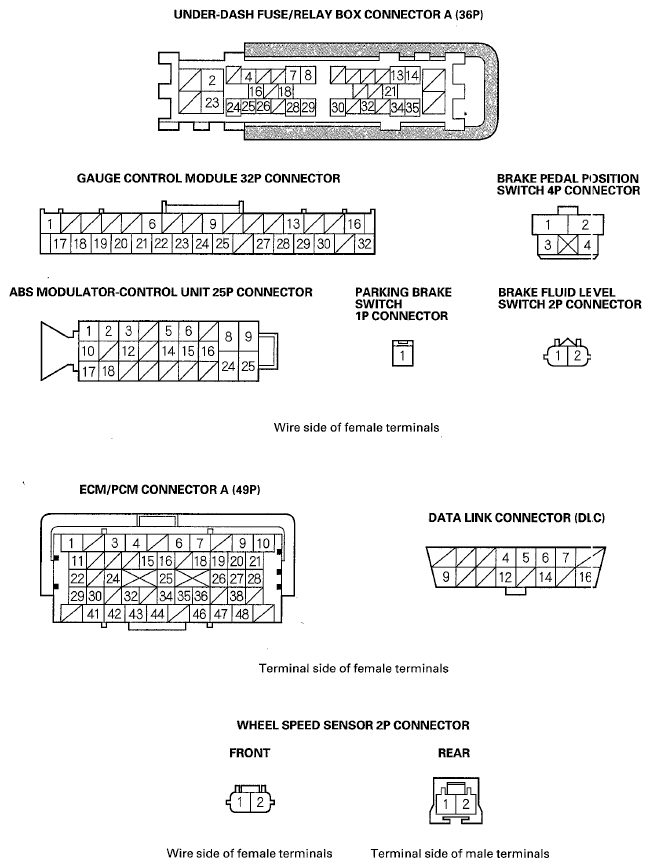

Fig 3: Identifying ABS Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
