Relays And Control Unit Locations: Dashboard

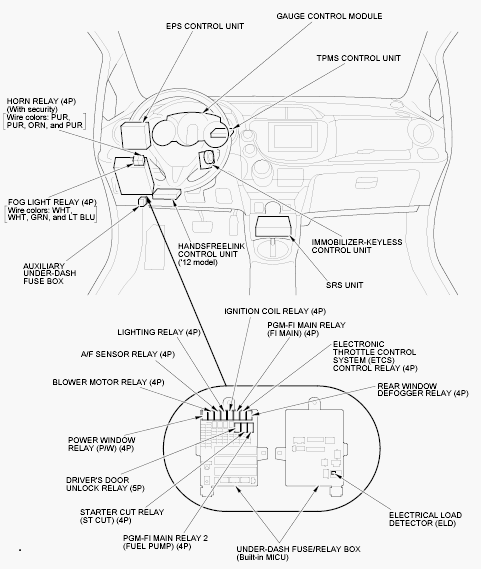

Fig 1: Identifying Dashboard Relay & Control Unit Replacement Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

With Navigation System

Fig 2: Identifying Dashboard Relay & Control Unit Replacement Components (With Navigation System)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without Navigation System

Fig 3: Identifying Dashboard Relay & Control Unit Replacement Components (Without Navigation System)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
