Drive Belt Auto-Tensioner Removal/Installation

Remove the drive belt (see DRIVE BELT REMOVAL/INSTALLATION ).
Remove the auto-tensioner

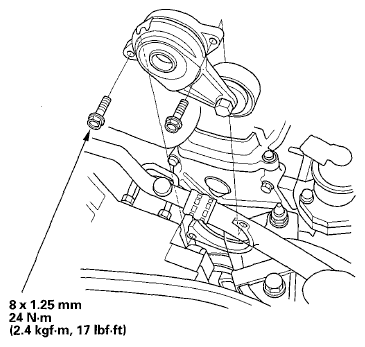

Fig 1: Auto-Tensioner & Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the auto-tensioner in the reverse order of removal.
