Honda
›
2012
›
Fit Base, Automatic Trans
›
Repair and Diagnosis
›
Electrical
›
Gauges
›
Reminder Systems
›
Circuit Diagram
Circuit Diagram

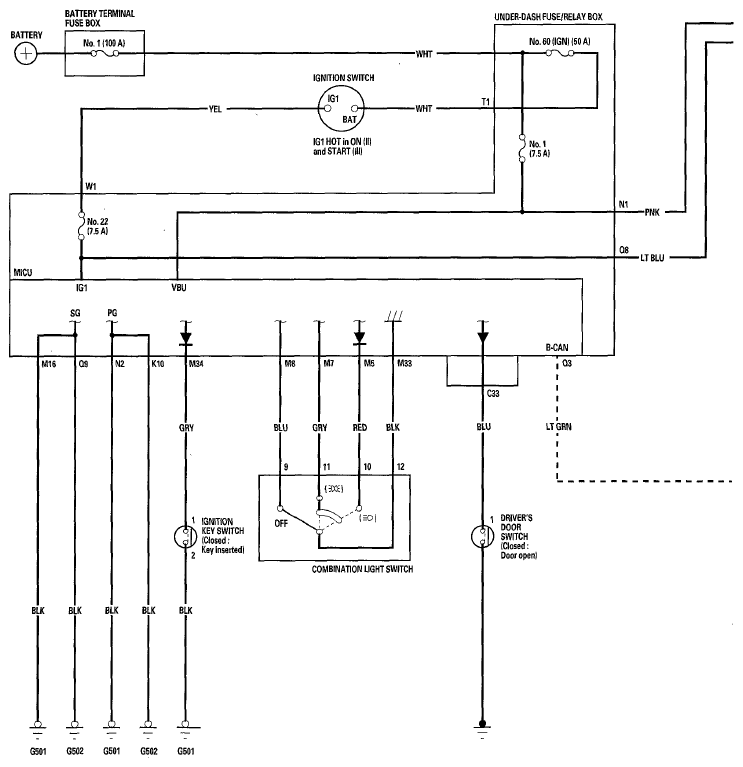

Fig 1: Identifying Reminder Systems - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

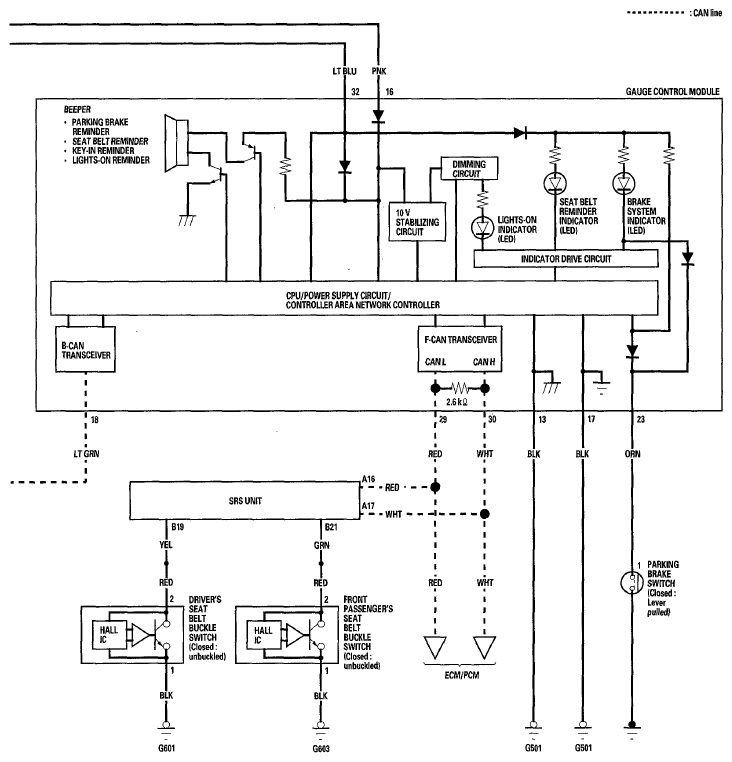

Fig 2: Identifying Reminder Systems - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
