EGR Valve Replacement

Disconnect the EGR valve connector (A).

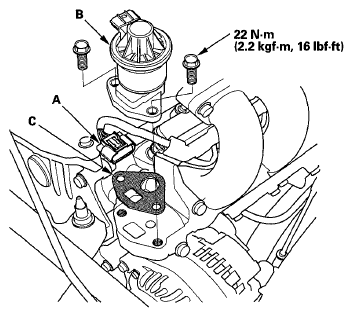

Fig 1: EGR Valve, Connector & Gasket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EGR valve (B).
Install the parts in the reverse order of removal with a new gasket (C).
