Intake Manifold Chamber Removal and Installation
›
Exploded View
Exploded View

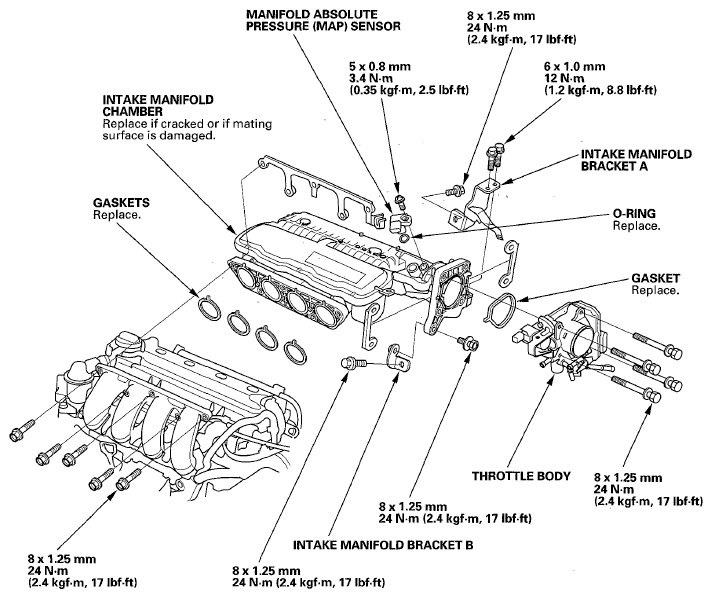

Fig 1: Identifying Intake Manifold Chamber Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
