Component Location Index

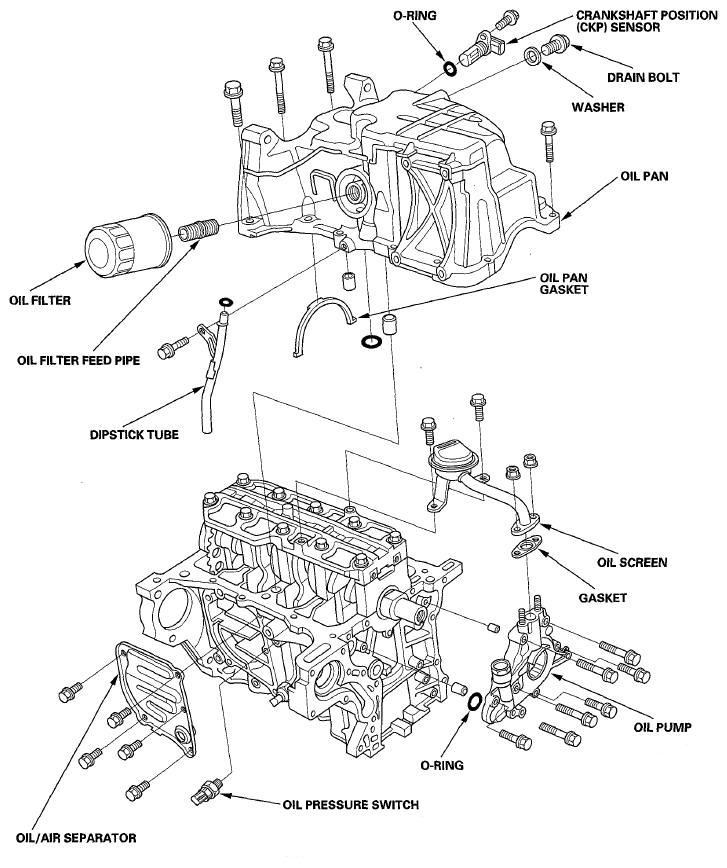

Fig 1: Identifying Engine Lubrication Replacement Components
G05952656Courtesy of AMERICAN HONDA MOTOR CO., INC.
