Rocker Arm Assembly Installation

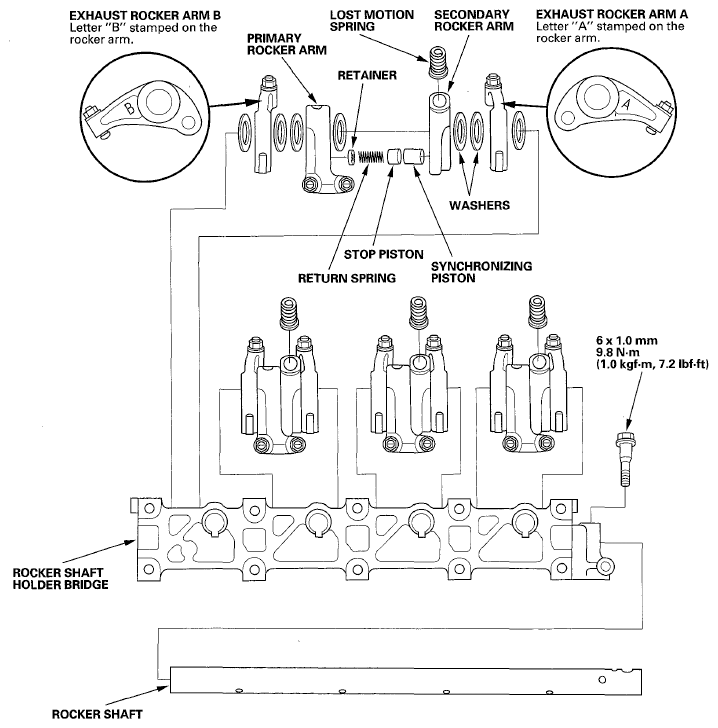

  1. If the rocker arm assembly is disassembled, reassemble the rocker arm assembly. (See ROCKER ARM AND SHAFT DISASSEMBLY/REASSEMBLY ). Refer to Figure.
  2. Apply engine oil to the end of the valve stem.
  3. Install the rocker arm assembly.

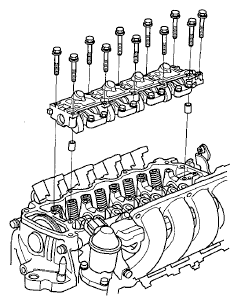

    Fig 1: Identifying Rocker Arm Assembly And Fasteners
    G05952564Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Tighten each bolts two turns at a time in the sequence shown below.

    Specified Torque

    6 x 1.0 mm

    (1)-(10): 15 N.m (1.5 kgf.m, 11 lbf.ft)

    (11): 9.8 N.m (1.0 kgf.m, 7.2 lbf.ft)

    Fig 2: Identifying Rocker Arm Assembly Bolts Tightening Sequence
    G05952565Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Adjust the valve clearance (see VALVE CLEARANCE ADJUSTMENT  ).
  6. Install the cylinder head cover (see CYLINDER HEAD COVER INSTALLATION  ).
