With Navigation System

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

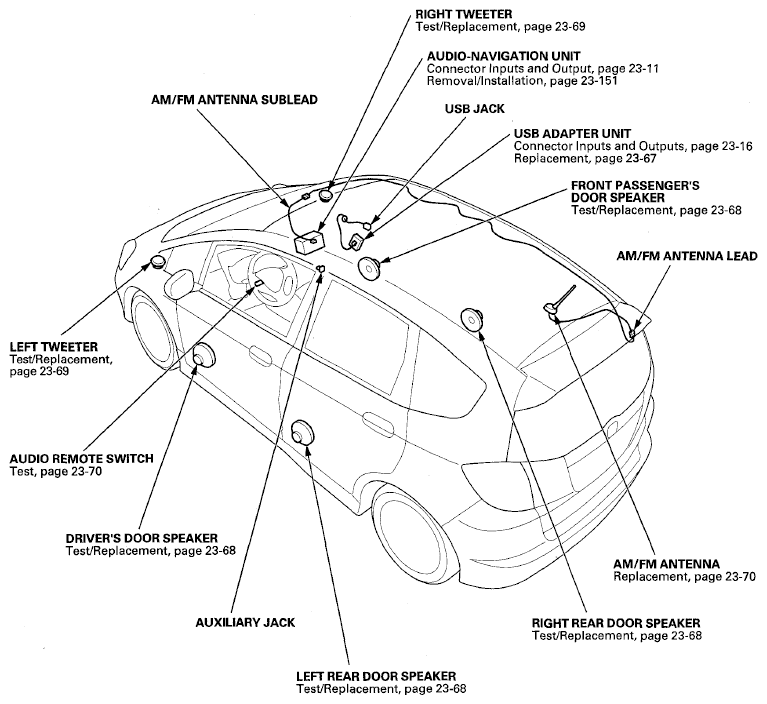

Fig 1: Identifying Navigation System Components (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
