Clutch Pedal Assembly Replacement

WARNING: This page is about a different variant/trim than selected.
NOTE: Without cruise control: The adjusting bolt is substituted as clutch pedal position switch.
  1. Disconnect the clutch pedal position switch connector (A) and the clutch interlock switch connector (B). Remove the harness clip (C).
    Fig 1: Identifying Clutch Pedal Assembly Components
    G05953288Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Pry out the lock pin (D), and pull the clevis pin (E) out of the clevis.
  3. Remove the master cylinder mounting nuts (F) and clutch pedal mounting nuts (G).
  4. Remove the clutch pedal assembly (H).
  5. Remove the clutch pedal position switch (I) and the clutch interlock switch (J).
  6. Loosely install the clutch pedal position switch (A) and the clutch interlock switch (B).
    Fig 2: Identifying Clutch Pedal Position Switch & Clutch Interlock Switch
    G05953289Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the clutch pedal assembly (A).

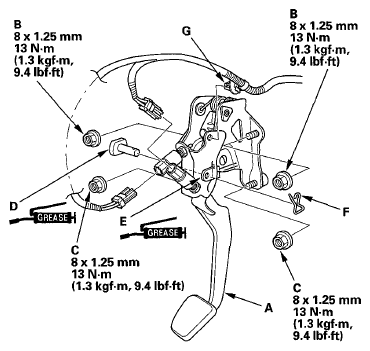

    Fig 3: Clutch Pedal Assembly, Master Cylinder & Mounting Nuts With Torque Specifications
    G05953290Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the clutch pedal mounting nuts (B) and master cylinder mounting nuts (C).
  9. Apply multipurpose grease to the clevis pin (D) and the mating surfaces (E) of the clevis and the pedal. Slide the clevis pin into the clevis, then install a lock pin (F).
  10. Adjust the clutch pedal, the clutch pedal position switch, and the clutch interlock switch (see CLUTCH PEDAL, CLUTCH PEDAL POSITION SWITCH, AND CLUTCH INTERLOCK SWITCH ADJUSTMENT  ).
    NOTE: Connect the switch connectors after adjusting them.
  11. Install the harness clip (G).
  12. Check the clutch operation.
