Slave Cylinder Replacement: Removal/Installation

WARNING: This page is about a different variant/trim than selected.

Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
Remove the air cleaner housing (see AIR CLEANER REMOVAL/INSTALLATION ).
Remove the mounting bolts (A), clutch line bracket (B), and clutch line clip (C), then remove the slave cylinder (D).

Fig 1: Identifying Mounting Bolts, Clutch Line Bracket, Clutch Line Clip & Slave Cylinder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the clutch line (A). Plug the end of the clutch line with a shop towel to prevent brake fluid from coming out.
NOTE: Loosen the flare nut (B) while holding the clutch line connector (C) with a wrench.

Fig 2: View Of Clutch Line, Flare Nut & Clutch Line Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the clutch line (A).
NOTE: Tighten the flare nut (B) while holding the clutch line connector (C) with a wrench.

Fig 3: Clutch Line, Flare Nut & Clutch Line Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply a light coat of super high temp urea grease (P/N 08798-9002) to the push rod (A) of the slave cylinder.
Install the clutch line clip (B), the clutch line bracket (C), and the mounting bolts (D).

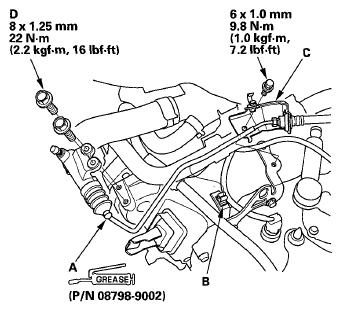

Fig 4: Push Rod, Clutch Line Clip, Bracket & Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Bleed the clutch hydraulic system (see CLUTCH HYDRAULIC SYSTEM BLEEDING ).
Check the clutch operation, and check for leaks.
Install the air cleaner housing (see AIR CLEANER REMOVAL/INSTALLATION ).
Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
Test-drive the vehicle.
