Exploded View

WARNING: This page is about a different variant/trim than selected.

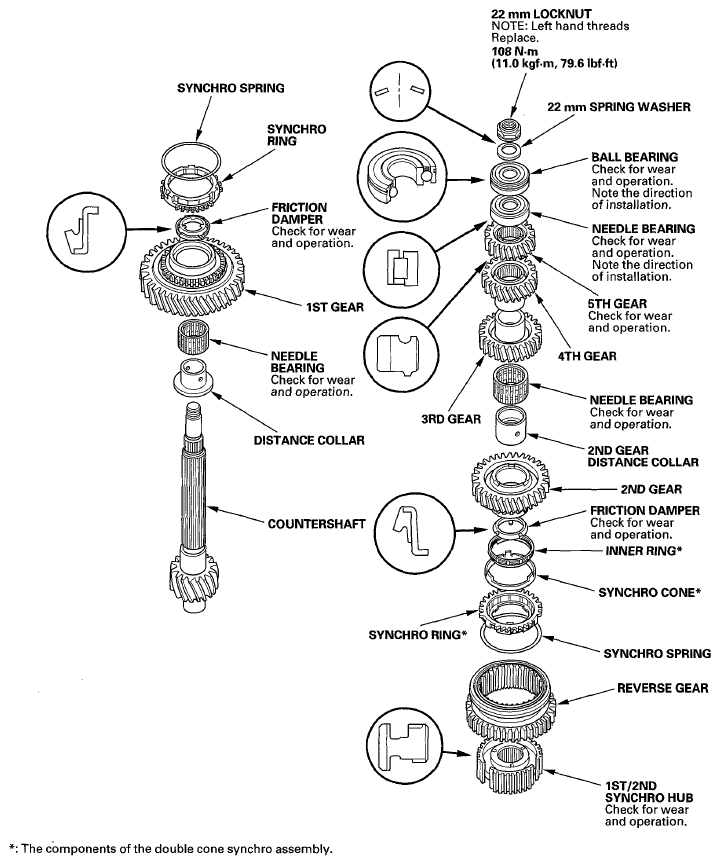

Fig 1: Identifying Countershaft Reassembly Replacement Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
