Gearshift Mechanism Replacement

WARNING: This page is about a different variant/trim than selected.
NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.

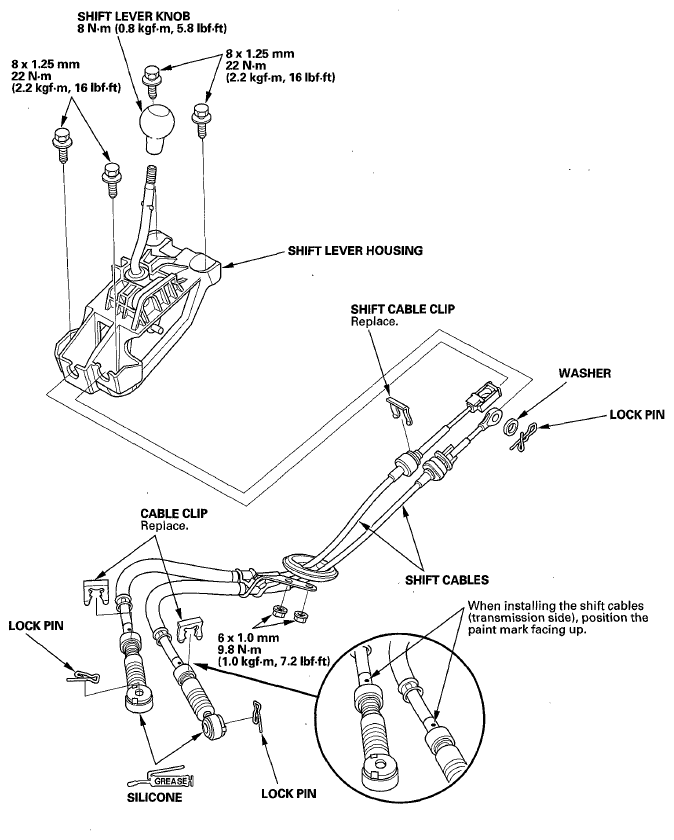

Fig 1: Identifying Gearshift Mechanism Replacement Components With Torque Specifications
G05953484Courtesy of AMERICAN HONDA MOTOR CO., INC.
