Automatic Transmission
›
A/T Interlock System
›
Circuit Diagram
›
Seven-position Transmission
Seven-position Transmission

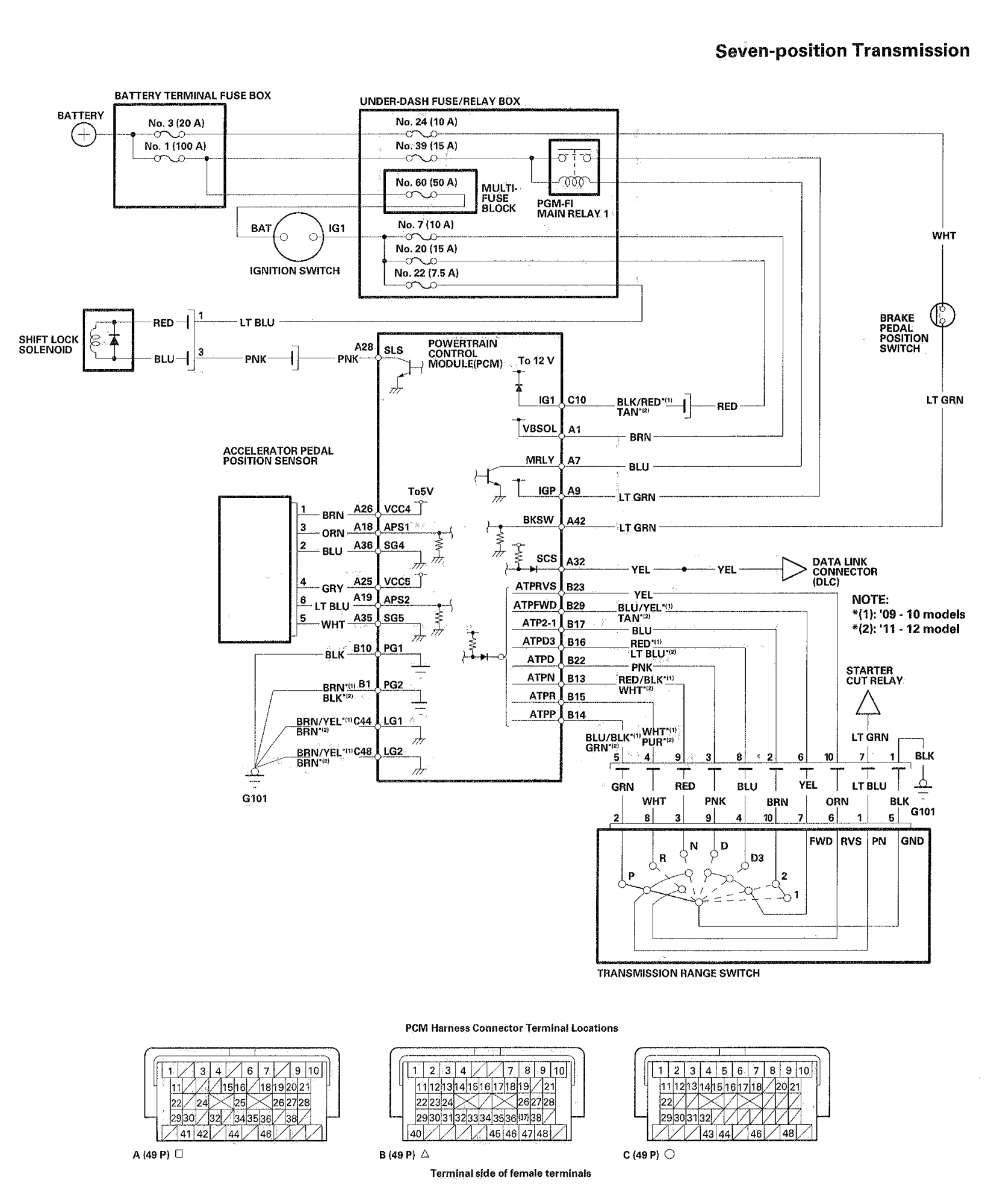

Fig 1: Seven-Position Transmission Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
