Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
Audio System
›
Component Location Index
›
Without navigation
Without navigation

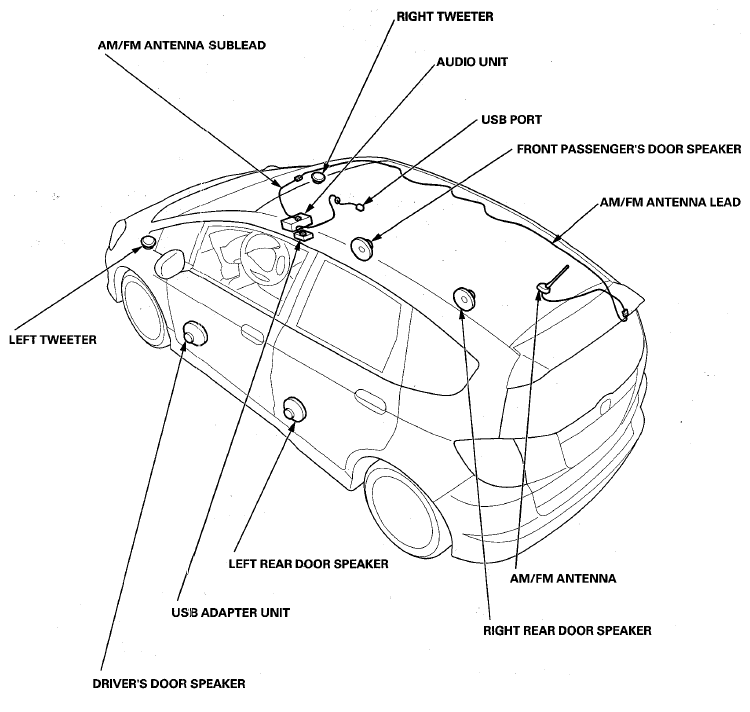

Fig 1: Identifying Audio System Component Location - Without Navigation
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
