Special Tools Required

KTC trim tool set SOJATP2014*

* Available through the Honda Tool and Equipment Program; call 888-424-6857

SRS components are located in this area. Review the SRS COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES before doing repairs or service.

NOTE:

Take care not to scratch the front seat, the dashboard, or related parts.
When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damage.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

M/T model: Remove the shift knob (A).

Fig 1: Identifying Shift Knob - M/T Model
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the console, lid (A) from the center console (B).
1. Pry up on the rear hook (C) with a flat-tipped screwdriver wrapped with protective tape.
2. Carefully pull up the console lid to release the hooks (D).

  Fig 2: Identifying Lid, Center Console & Rear Hook
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the center console (A).
1. Remove the parking brake cover lid (B).
2. Remove the console box mat (C), then remove the bolt (D), and the clips (E).
3. Lift the rear of the console up to detach the clip (F), and pull off the front pin (G) from the heater unit.

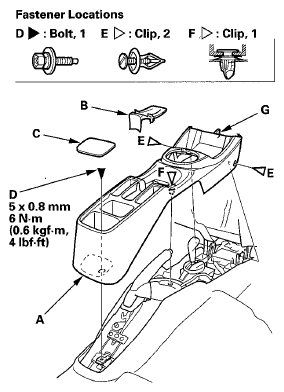

  Fig 3: Center Console, Parking Brake Cover Lid, Console Box Mat, Bolt & Clips With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
- Make sure the wire harnesses are not pinched.
