EGR Pipe Removal and Installation: Installation

Install the EGR pipe on the cylinder head side with a new gasket (A), and hand-tighten the nuts (B).

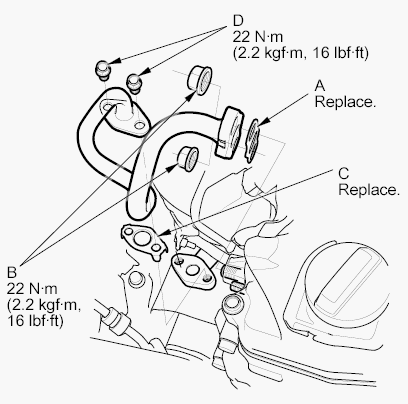

Fig 1: Gasket, Hand-Tighten Nuts & Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the EGR pipe on the WU-TWC side with a new gasket (C), and tighten the bolts (D).
Tighten the nuts on the cylinder head side.
Install the cowl cover (see COWL COVER REPLACEMENT ) and the under-cowl panel (see UNDER-COWL PANEL REPLACEMENT ).
