EVAP Canister Filter Replacement

Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
Disconnect the hoses (A).

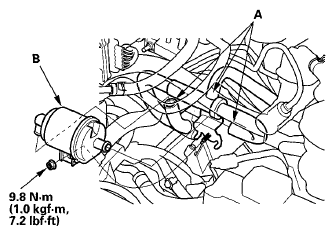

Fig 1: Hose & EVAP Canister Filter With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister filter (B).
Install the parts in the reverse order of removal.
