Front Inner Fender Replacement

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body.
When prying with a flat-tip screwdriver, wrapped it with protective tape to prevent damage.

Remove the front inner fender (A).
1. Canada model: On the back of the wheel arch, remove the screws (B), and remove the front mud guard (C).
2. From under the front bumper (D), remove the screws (E) securing the front bumper, the splash shield (F), the front bulkhead lower cover (G), and the front inner fender.
3. Remove the clip (H) securing the front bumper and the front inner fender.
4. From the wheel arch, remove the clip (I) securing the splash shield and the front inner fender.
5. From the wheel arch, remove the clips (J, K, L) and the screw (M).
6. Release the hook (N) of the splash shield.

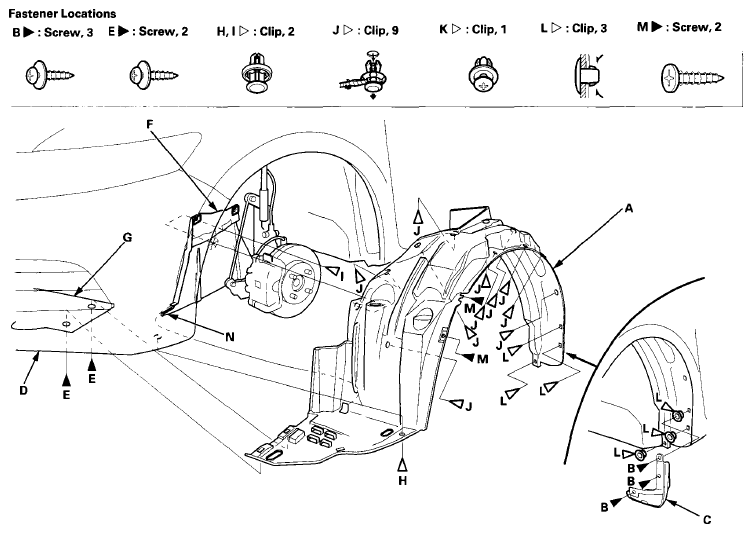

  Fig 1: Identifying Front Inner Fender Clips And Screws
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the front inner fender in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hook into place securely.
