Hatch Latch Replacement

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the hatch and the related parts.
If the hatch latch does not unlock by using the keyless entry transmitter or unlocking the driver's door lock, remove the maintenance lid (A) from the hatch lower trim panel, then unlock the hatch latch by turning the lock lever (B) clockwise as shown. Open the hatch by pulling the hatch handle.

Fig 1: Turning Lock Lever Clockwise
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Remove the hatch lower trim panel (see TRIM REMOVAL/INSTALLATION - HATCH AREAS ).

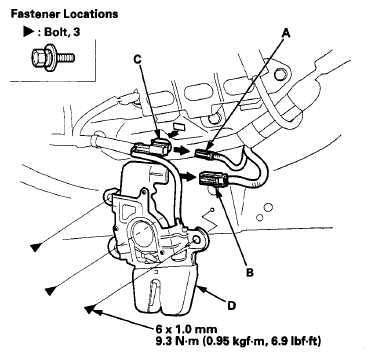

Disconnect the hatch latch switch connector (A) and the hatch release actuator connector (B) and detach the connector clip (C), then remove the bolts securing the hatch latch (D) from the hatch.

Fig 2: Hatch Latch Switch Connector And Hatch Release Actuator Connector With Bolt Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the hatch latch in the reverse order of removal, and note these items:
- Make sure the connectors are plugged in properly.
- Make sure the hatch opens properly and locks securely.
