Rear Seat Beam Replacement

NOTE: Take care not to scratch the body

Remove these items:
- Rear door sill trim (see REAR DOOR SILL AREA )
- Rear seat-back (see SEAT-BACK )
- Rear seat cushion (see SEAT CUSHION )
- Rear seat belt buckle (see REAR SEAT BELT BUCKLES AND REAR CENTER SEAT BELT BUCKLE )
- Cargo area side trim panels, both sides (see TRIM REMOVAL/INSTALLATION - CARGO AREAS )
Remove the bolts, then remove the rear seat-back beam (A).

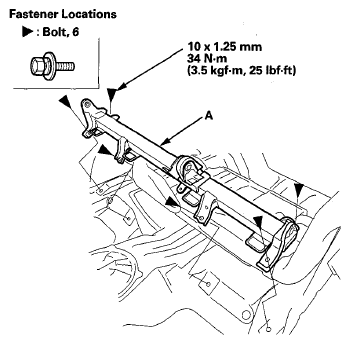

Fig 1: Rear Seat-Back Beam And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the beam in the reverse order of removal.
