Exploded View

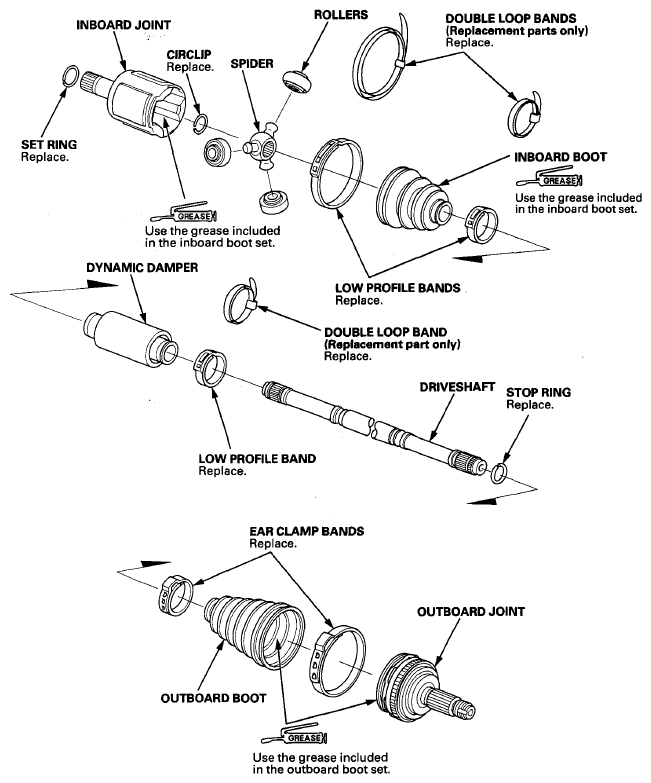

Fig 1: Exploded View Of Driveshaft Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Boot Band Tool KD-3191 or equivalent, commercially available
• Boot Band Clamp Tool Kent-Moore J-35910 or equivalent, commercially available
• Boot Band Pliers, commercially available
  NOTE: Refer to the EXPLODED VIEW , as needed, during this procedure.
