Component Location Index

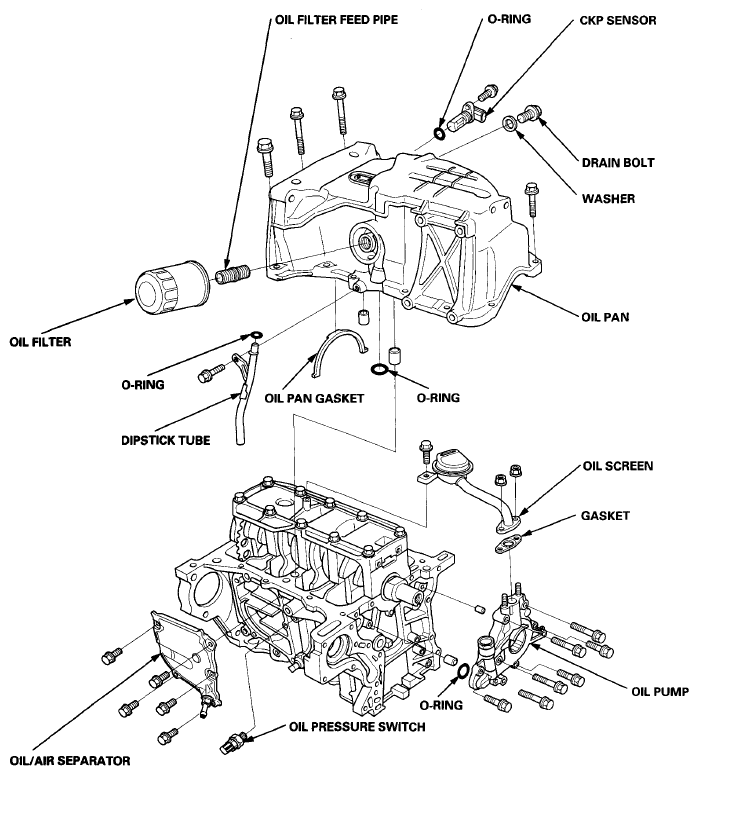

Fig 1: Engine Lubrication System Components
G08092027Courtesy of AMERICAN HONDA MOTOR CO., INC.
