DTC P0351: Intake Side Ignition Coil Power Circuit Malfunction: Notes

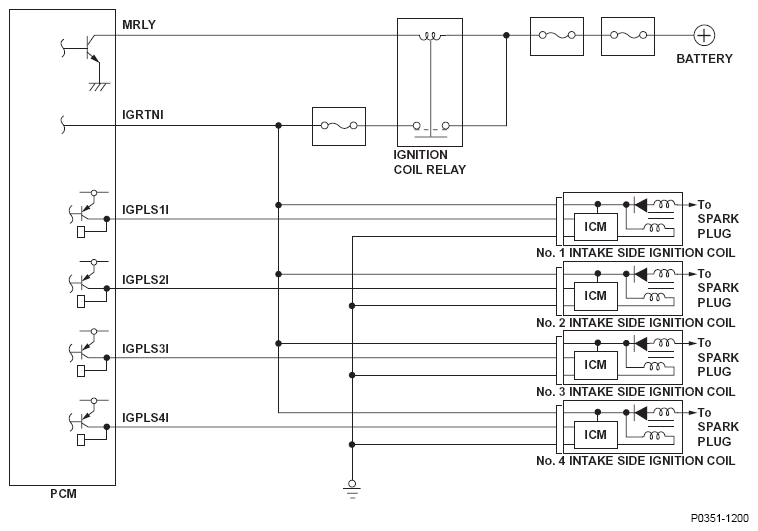

Fig 1: Intake Side Ignition Coil Power - Circuit Diagram

G08568453
