Repair and Diagnosis
›
Engine Performance
›
System
›
Fuel And Emissions Systems
›
System Description
›
Fuel and Emissions Systems Diagram
›
System Diagram
System Diagram

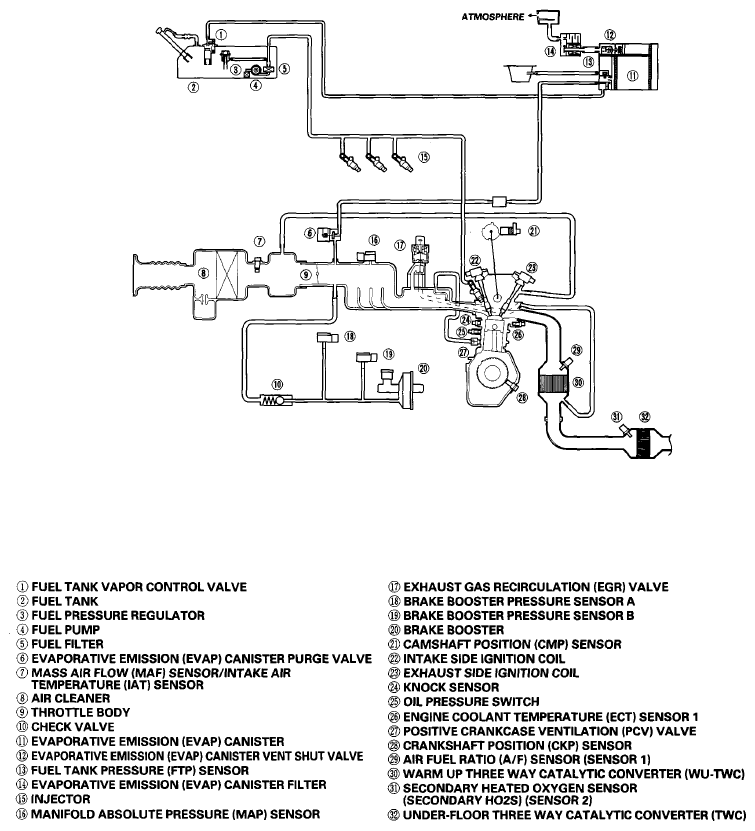

Fig 1: Fuel And Emissions Systems Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
