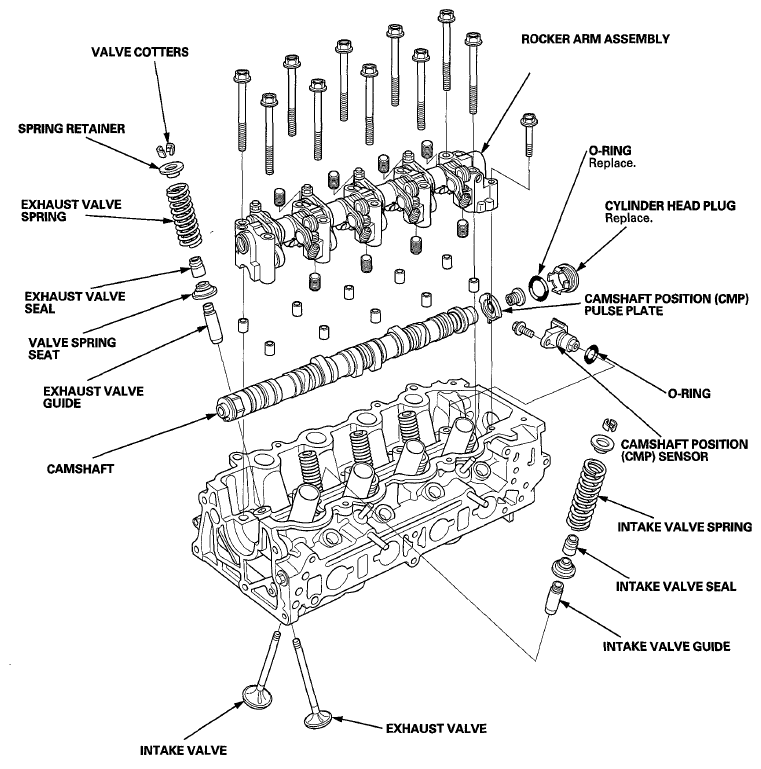

Fig 1: Identifying Cylinder Head Component Location (1 Of 3)

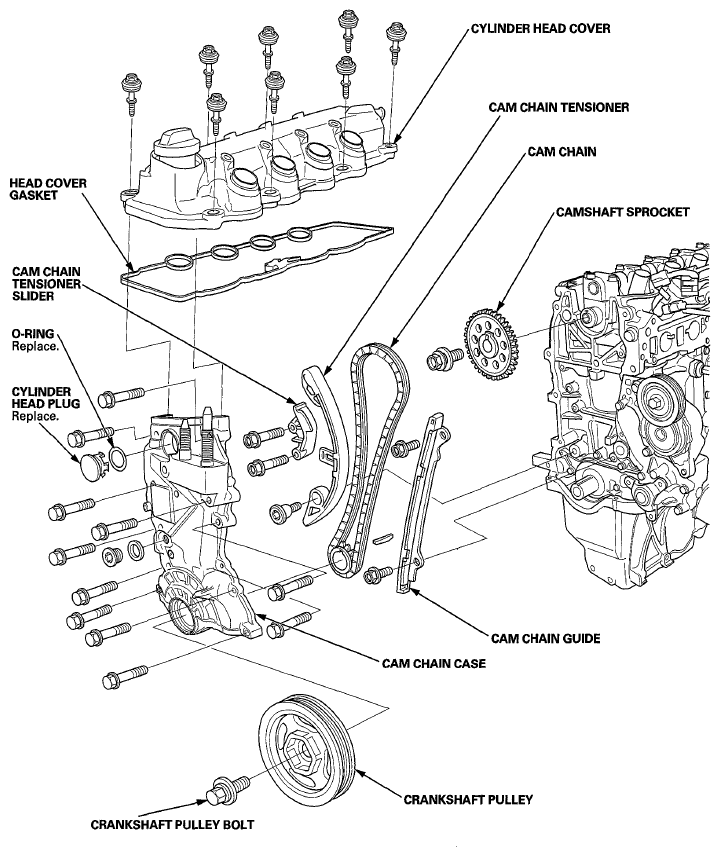

Fig 2: Identifying Cylinder Head Component Location (2 Of 3)

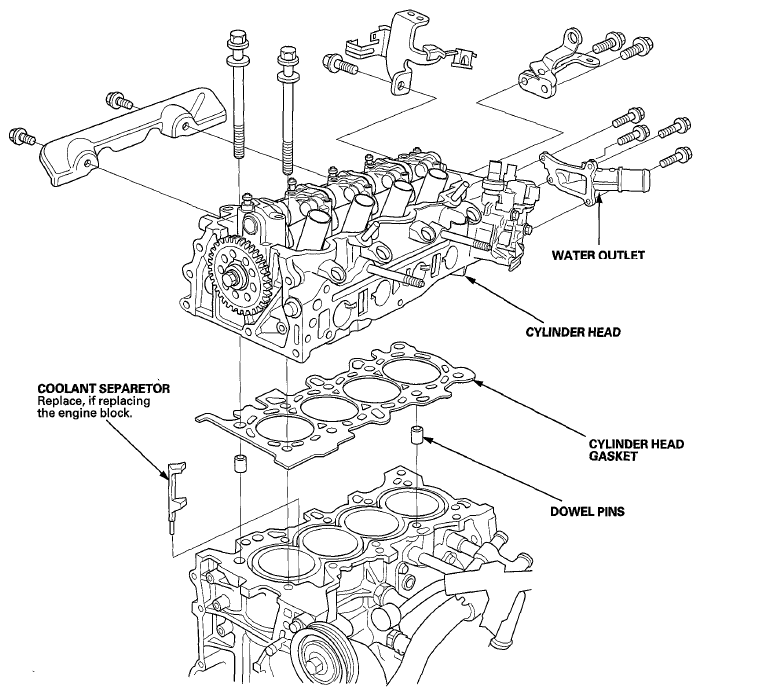

Fig 3: Identifying Cylinder Head Component Location (3 Of 3)
