Expansion Valve Replacement
- Do steps 1 to 8 of the Evaporator Core Replacement (see EVAPORATOR CORE REPLACEMENT ).

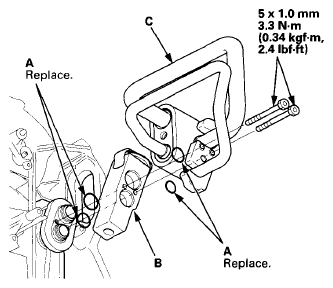

- Remove the bolts, O-rings (A), and the expansion valve (B) from the pipe (C).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the expansion valve in the reverse order of removal, and note these items:
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
- Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
- Make sure that there is no air leakage.
- Charge the system (see SYSTEM CHARGING ).
