Side Impact Sensor (Second) Replacement: Installation

Install the side impact sensor (second) with a new TORX bolt (A), using a TORX T30 bit. Connect the wire harness 2P connector (B) to the side impact sensor (second) (C).

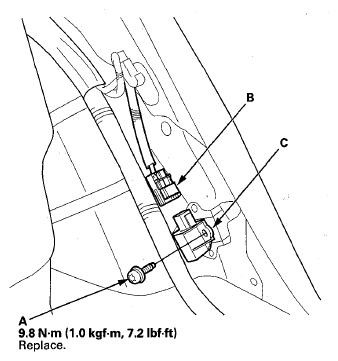

Fig 1: Torx Bolt, Wire Harness 2P Connector And Side Impact Sensor (Second) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do the 12 volt battery terminal reconnection procedure (see RECONNECTION ).
Clear any DTCs with the HDS (see HOW TO CLEAR DTCS ).
Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
Reinstall all removed parts.
