EPS Motor Removal and Installation: Installation

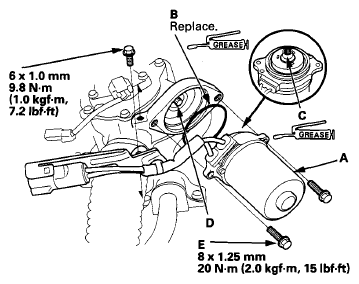

- Clean the mating surfaces of the EPS motor (A) and the steering gearbox.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Apply grease included in the motor set to the new O-ring (B), and carefully fit it on the EPS motor.
- Apply steering grease to the EPS motor shaft (C).
- Install the EPS motor on the steering gearbox by engaging the EPS motor shaft and the worm shaft (D).
- Before tightening the bolts, turn the EPS motor two or three times to the right and left about 45 degrees. Make sure the EPS motor is evenly seated on the steering gearbox, and that the O-ring is not pinched between the mating surfaces.
- Tighten the EPS motor mounting bolts (E) to the specified torque.
- Install the torque sensor 4P connector to the connector bracket.
- Install the steering gearbox (see INSTALLATION ).
