System Structure: Wheels

The TPMS will not work unless TPMS type wheels are installed on the vehicle. The original equipment wheels have a "TPMS" mark (A) on them, and are counterweighted by adding material to counterbalance the weight of the tire pressure sensor (B).

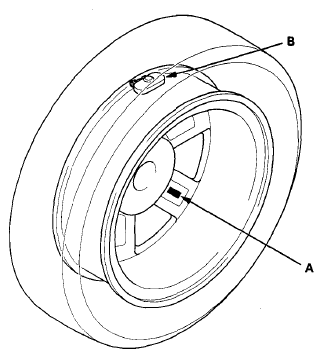

Fig 1: Identifying Original Equipment Wheels TPMS Mark And Tire Pressure Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
