Five - position Transmission
Five - position Transmission

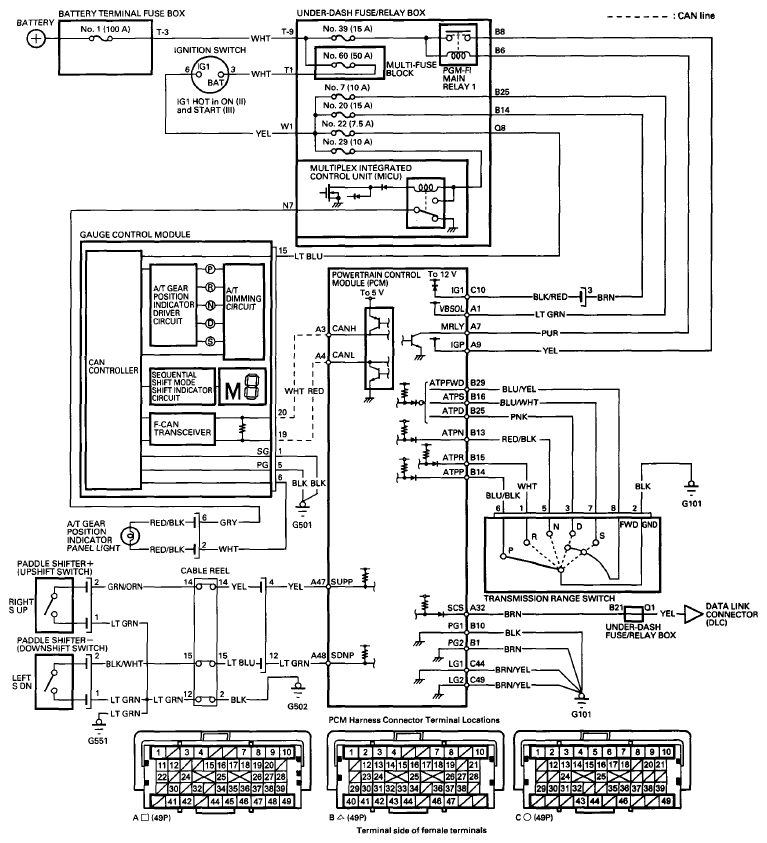

Fig 1: A/T Gear Position Indicator Circuit Diagram (Five - Position Transmission)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

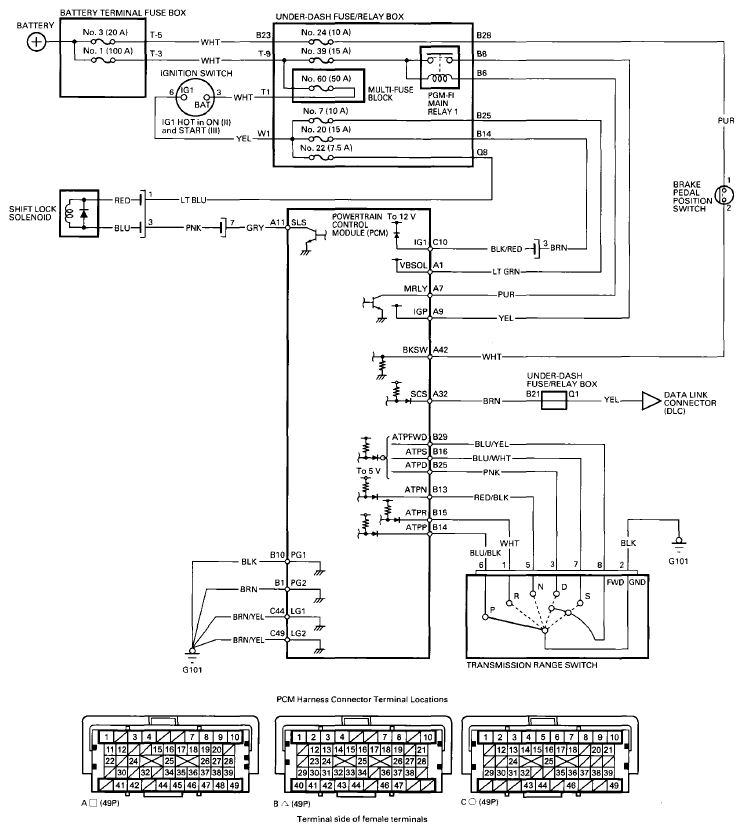

Fig 1: A/T Interlock System Circuit Diagram (Five - Position Transmission)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
