Six - position Transmission

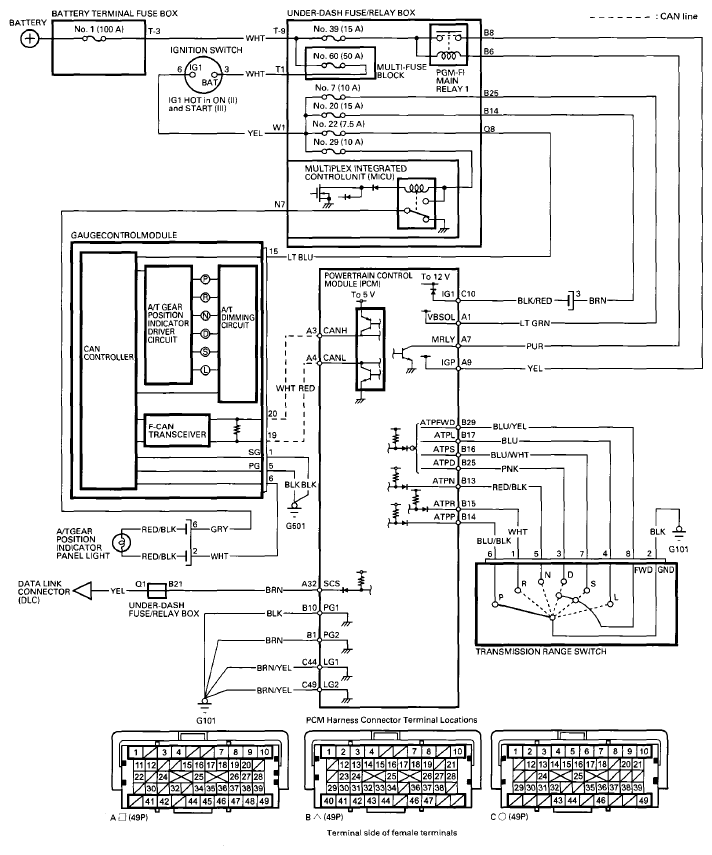

Fig 1: A/T Gear Position Indicator Circuit Diagram (Six - Position Transmission)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

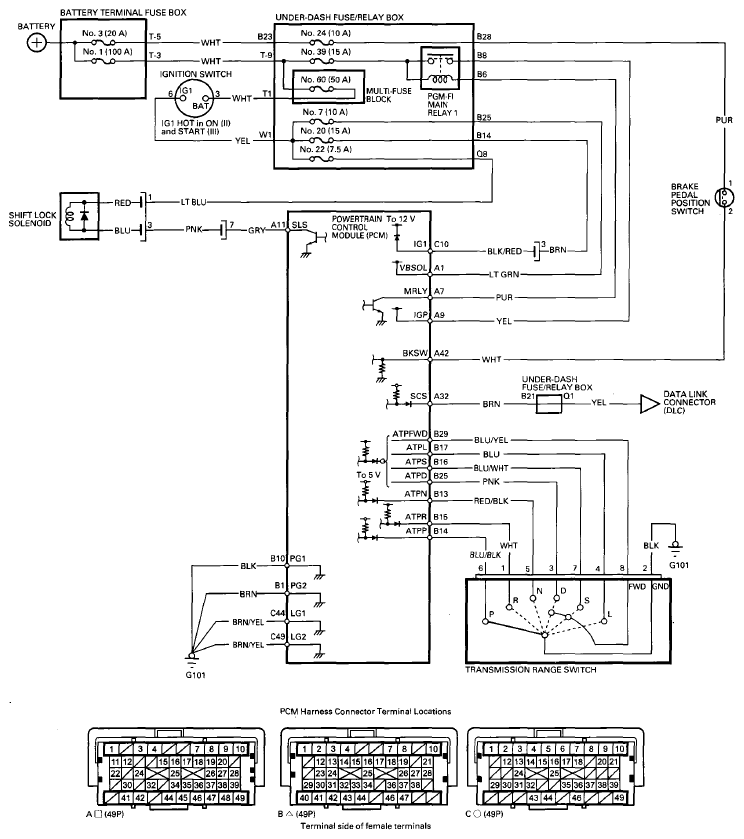

Fig 1: A/T Interlock System Circuit Diagram (Six - Position Transmission)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
