Component Location Index
›
Six-position Transmission
Six-position Transmission

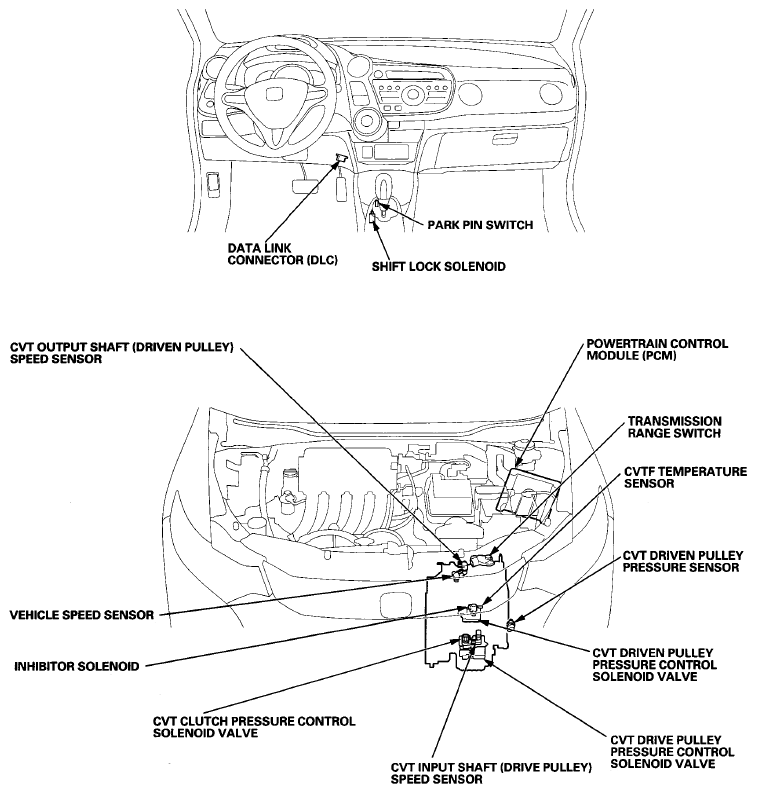

Fig 1: Identifying CVT Component Location (Six-Position Transmission)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
