System Description
›
Electronic Control System
›
PCM CVT Control System Electrical Connections-Five-position Transmission
PCM CVT Control System Electrical Connections-Five-position Transmission

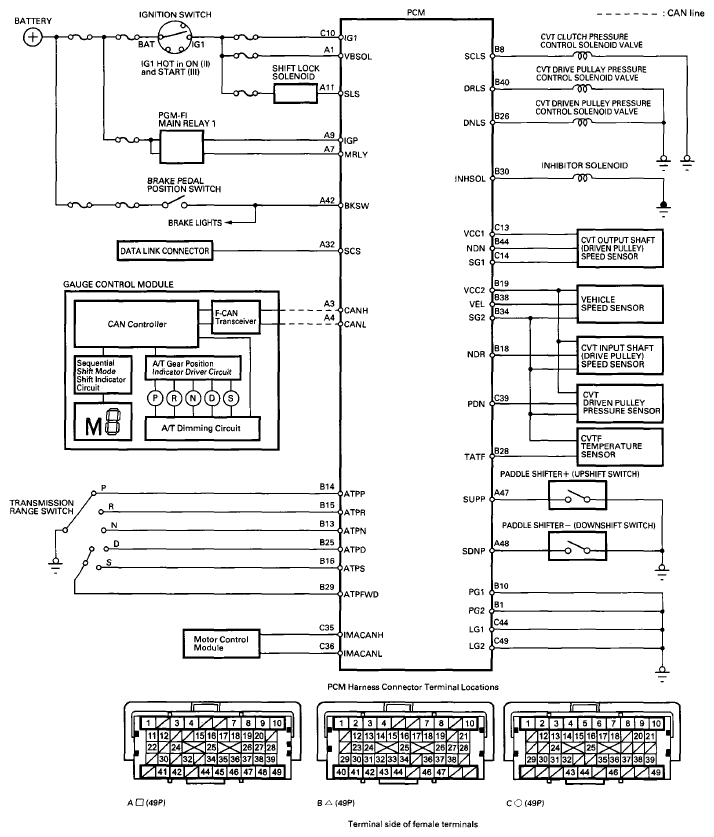

Fig 1: PCM CVT Control System Electrical Connections-Five-Position Transmission Circuit Diagram
