CVT
›
System Description
›
Electronic Control System
›
PCM CVT Control System Electrical Connections-Six-position Transmission
PCM CVT Control System Electrical Connections-Six-position Transmission

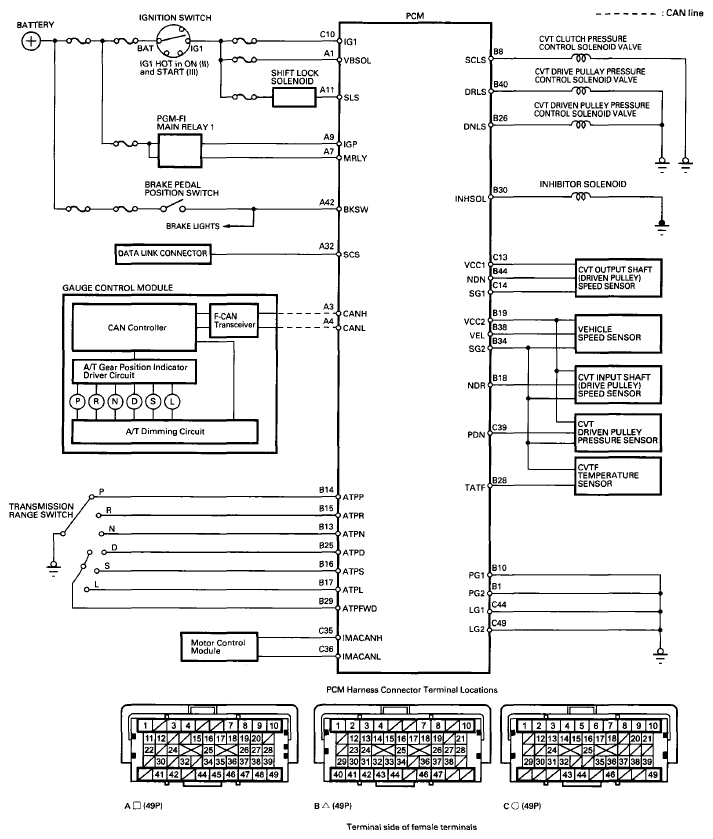

Fig 1: PCM CVT Control System Electrical Connections-Six-Position Transmission Circuit Diagram
