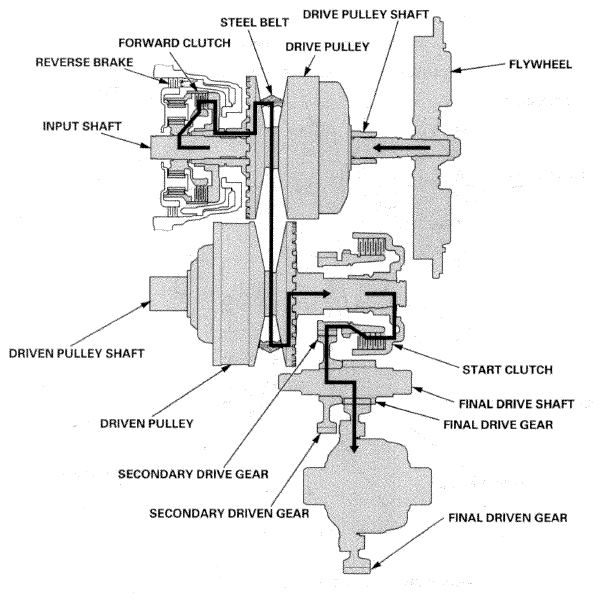

Forward Range; D, S, and L Positions
- Forward clutch: engage
- Reverse brake: disengage
- Start clutch: engage
- Hydraulic pressure is applied to the forward clutch and the start clutch, and the sun gear drives the forward clutch.
- The forward clutch drives the drive pulley shaft, which drives the driven pulley shaft linked by the steel belt,
- The driven pulley shaft drives the secondary drive gear via the start clutch,
- Power is transmitted to the secondary driven gear and the final drive gear, which in turn drives the final driven gear.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
