System Description
›
Shift Lock System
›
Circuit Diagram - PCM CVT Control System-Five-position Transmission
Circuit Diagram - PCM CVT Control System-Five-position Transmission

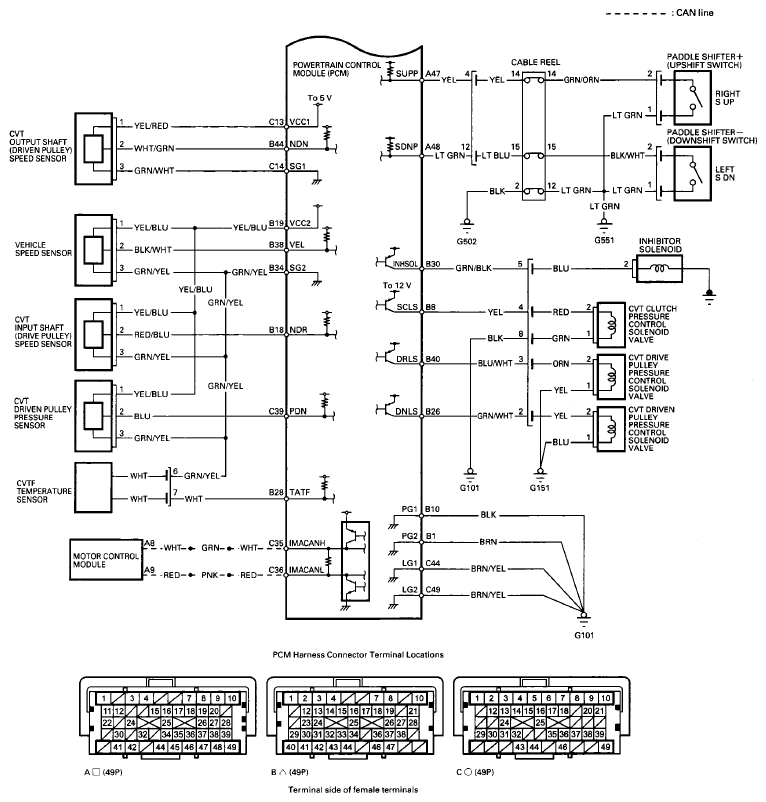

Fig 1: PCM CVT Control System-Five-Position Transmission - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

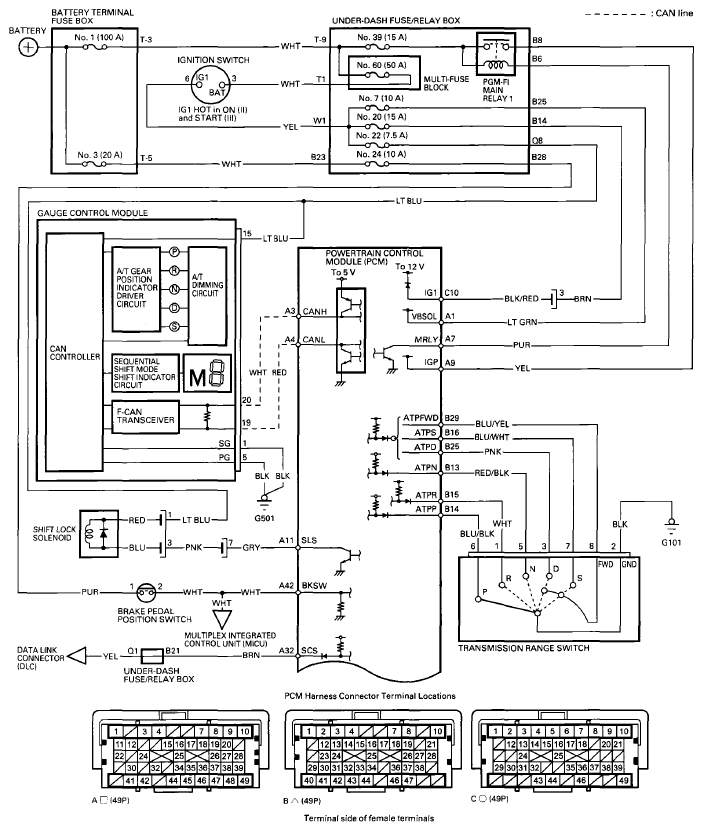

Fig 2: PCM CVT Control System-Five-Position Transmission - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
