Rear Entertainment System (RES) Control Unit Connector for Inputs and Outputs
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
| Connector Index |
|---|
| RES Control Unit Connector A (16P) |
| RES Control Unit Connector B (3P) |
| RES Control Unit Connector C (20P) |
| RES Control Unit Connector D (2P) |
| RES Control Unit Connector E (2P) |
| RES Control Unit Connector F (2P) (With CabinWatch) |
RES Control Unit Connector A (16P) (female terminals)

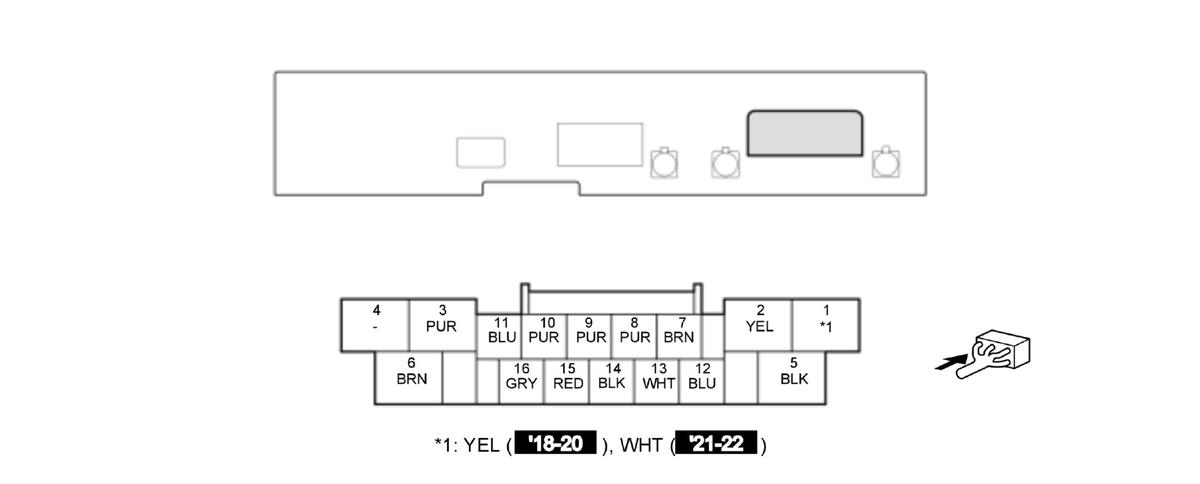

| Cavity | Terminal Name | Description |
|---|---|---|
| A1 | +B BACK UP | Continuous power source |
| A2 | CON CHECK1- | Ground for left RES auxiliary jack assembly connection signal |
| A3 | DISP CONT RES | Outputs signal for RES screen switching on/off |
| A4 | Not used | --- |
| A5 | GND | Ground for RES control unit (G403) |
| A6 | CON CHECK2- | Ground for right RES auxiliary jack assembly connection signal |
| A7 | SCTY RADIO SW | Security signal |
| A8 | SCTY 01 *1SCTY02 *2 | Security signal |
| A9 | MOST ECL7 *1MOST ECL 6 *2 | Inputs ECL signal |
| A10 | MOST ECL 5 | Outputs ECL signal |
| A11 | CON CHECK2+ | Detects connection for right RES auxiliary jack assembly |
| A12 | CON CHECK1+ | Detects connection for left RES auxiliary jack assembly |
| A13 | HP R | Inputs sound signal from left/right RES auxiliary jack assembly |
| A14 | HP GND | Ground for sound signal |
| A15 | HP L | Inputs sound signal from left/right RES auxiliary jack assembly |
| A16 | HP SH | Shield for terminals No. 13, No. 14, and No. 15 |
*1: With 11 speakers
*2: With 7 speakers
RES Control Unit Connector B (3P) (female terminals)

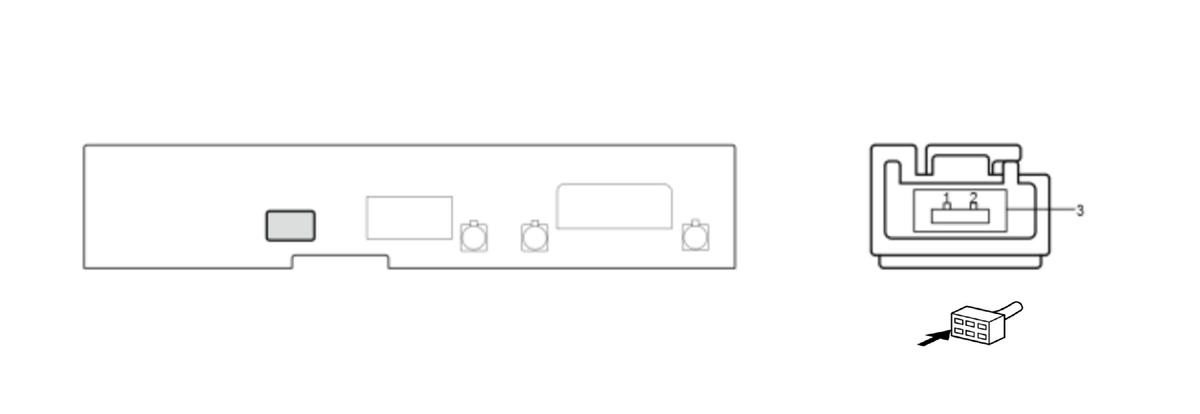

| Cavity | Terminal Name | Description |
|---|---|---|
| B1 | LVDS+ | Communication signal for RES screen |
| B2 | LVDS- | Communication signal for RES screen |
| B3 | LVDS SH | Shield for terminals No. 1 and No. 2 |
RES Control Unit Connector C (20P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|

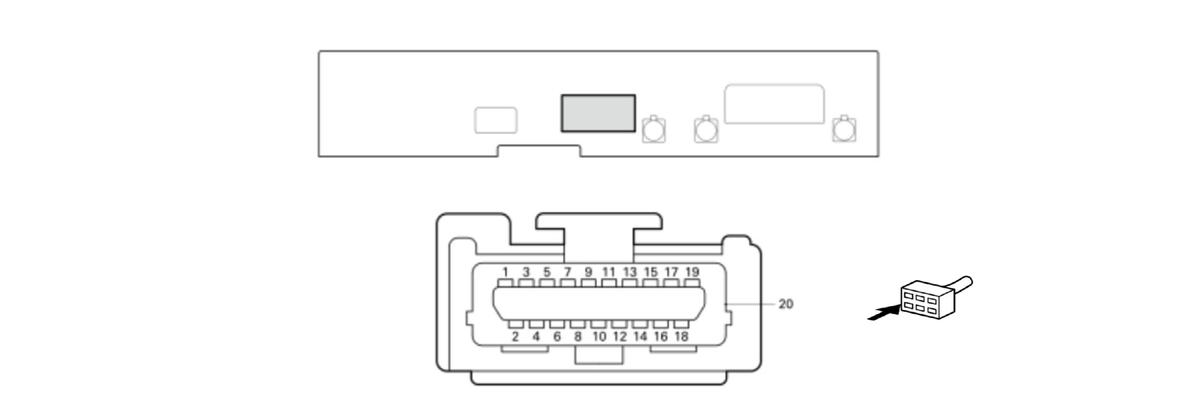

| C1 | T.M.D.S DATA2+ | Inputs video/audio data signal |
| C2 | T.M.D.S DATA2 SHIELD | Shield for terminals No. 1 and No. 3 |
| C3 | T.M.D.S DATA2- | Inputs video/audio data signal |
| C4 | T.M.D.S DATA1+ | Inputs video/audio data signal |
| C5 | T.M.D.S DATA1 SHIELD | Shield for terminals No. 4 and No. 6 |
| C6 | T.M.D.S DATA1- | Inputs video/audio data signal |
| C7 | T.M.D.S DATA0+ | Inputs video/audio data signal |
| C8 | T.M.D.S DATA0 SHIELD | Shield for terminals No. 7 and No. 9 |
| C9 | T.M.D.S DATA0- | Inputs video/audio data signal |
| C10 | T.M.D.S CLOCK+ | TMDS synchronous signal |
| C11 | T.M.D.S CLOCK SHIELD | Shield for terminals No. 10 and No. 12 |
| C12 | T.M.D.S CLOCK- | TMDS synchronous signal |
| C13 | CEC | HDMI control signal |
| C14 | N.O. | Not used |
| C15 | SCL | I2C bus synchronous signal |
| Cavity | Terminal Name | Description |
|---|---|---|
| C16 | SDA | I2C bus communication signal |
| C17 | DDC/CEC GROUND | Ground for HDMI control signal |
| C18 | +5V POWER | 5 V power supply |
| C19 | HOT PLUG DETECT | Detects connection signal |
| C20 | SHIELD | Shield for all of terminals |
RES Control Unit Connector D (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|

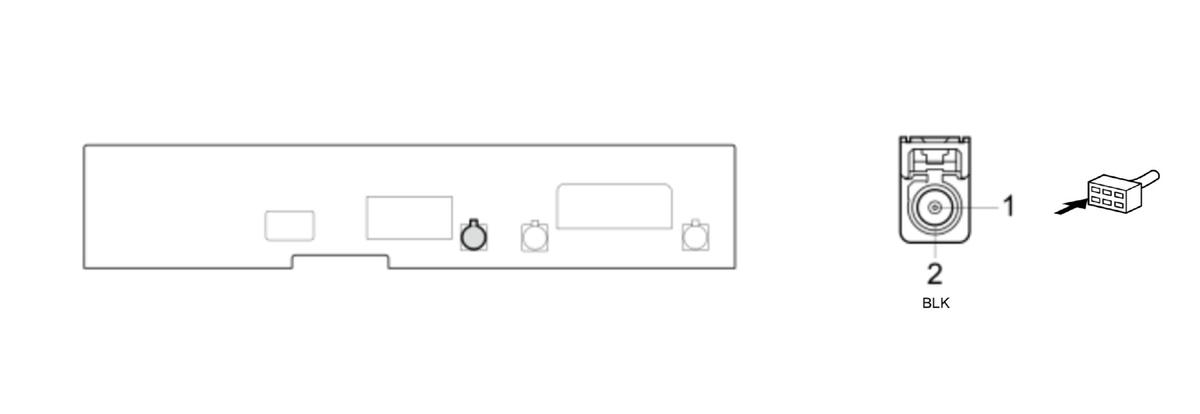

| D1 | MOST TX+ | Outputs MOST communication signal |
| D2 | MOST TX- | Shield for terminal No. 1 |
RES Control Unit Connector E (2P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|

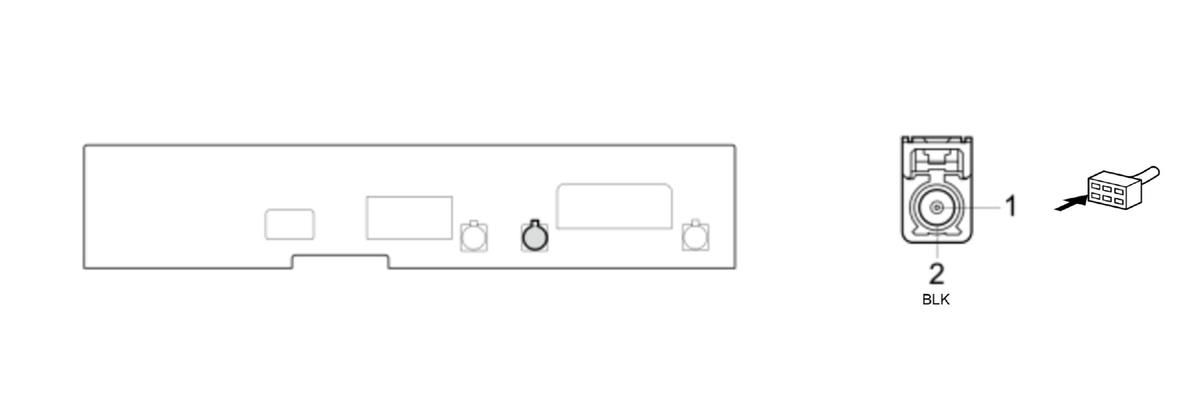

| E1 | MOST RX+ | Inputs MOST communication signal |
| E2 | MOST RX- | Shield for terminal No. 1 |
RES Control Unit Connector F (2P) (female terminals) (With CabinWatch)
| Cavity | Terminal Name | Description |
|---|---|---|

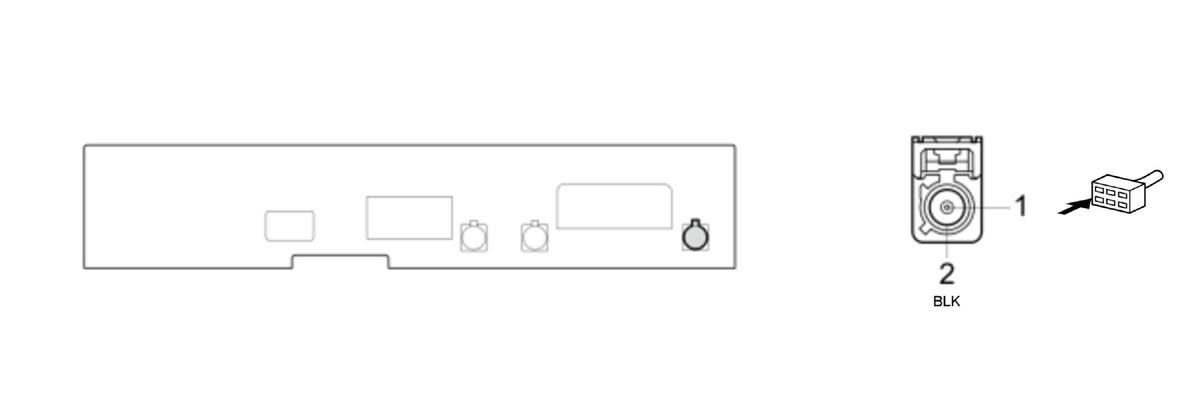

| F1 | CWC FPD | Communication signal for cabin watch camera |
| F2 | CWC FPD SH | Shield for terminal No. 1 |
