Speaker Check Mode: Notes

NOTE:
  • Not all self-diagnostic functions appear on all models.
  • There may be other self-diagnostic functions that are for factory use only.
  1. Turn the ignition switch to ON (II). Make sure the audio system is turned off.
  2. Press and hold the preset No. 1 and No. 3 buttons.
  3. While holding the buttons, push the VOLUME/POWER knob.
  4. Release the buttons, and the speaker check mode begins.

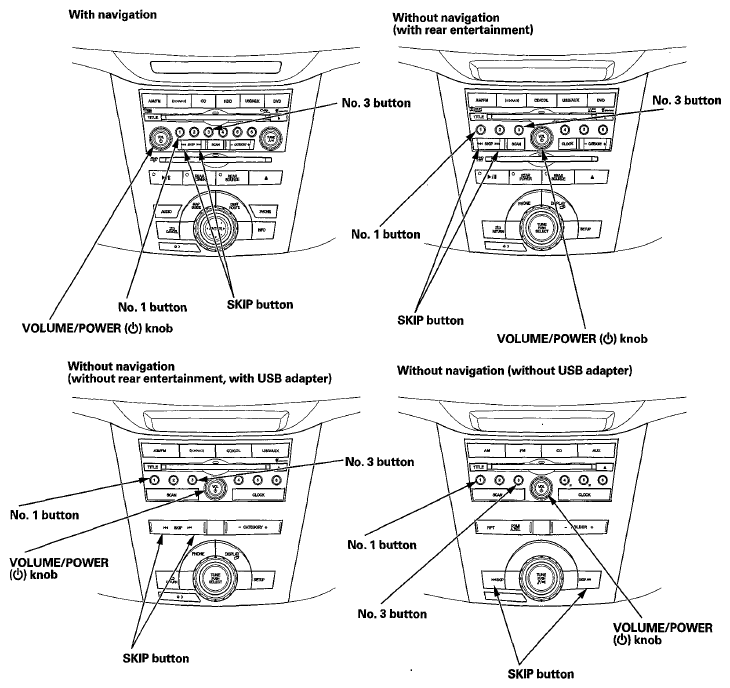

    Fig 1: Locating Audio System Buttons And Volume/Power Knob
    G06970689Courtesy of AMERICAN HONDA MOTOR CO., INC.
