Block Diagram

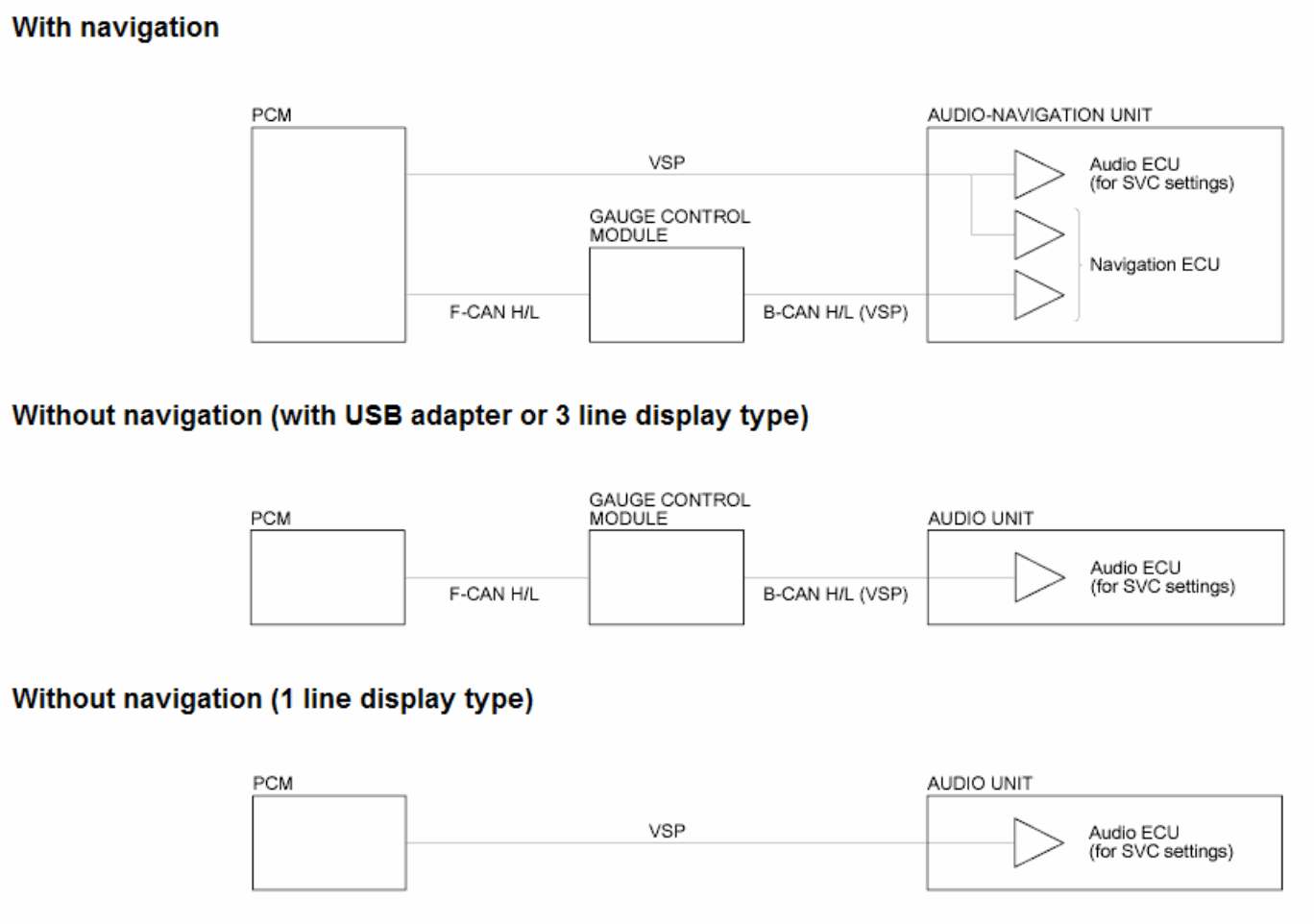

Fig 1: Speed-Sensitive Volume Compensation Block Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

To change the audio-navigation unit SVC setting, press the AUDIO button, and then select the Sound Setup from the AUDIO MENU on the navigation display. Rotate the interface dial to select the desired setting (SVC OFF, SVC LOW, SVC MID, or SVC HIGH).

To change the audio unit SVC setting, press the tune folder sound knob repeatedly until the SVC is displayed, then rotate the knob to adjust the SVC to the desired setting (SVC OFF, SVC LOW, SVC MID, or SVC HIGH).
