Odyssey EX
›
Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Charging System
›
Circuit Diagram
Circuit Diagram

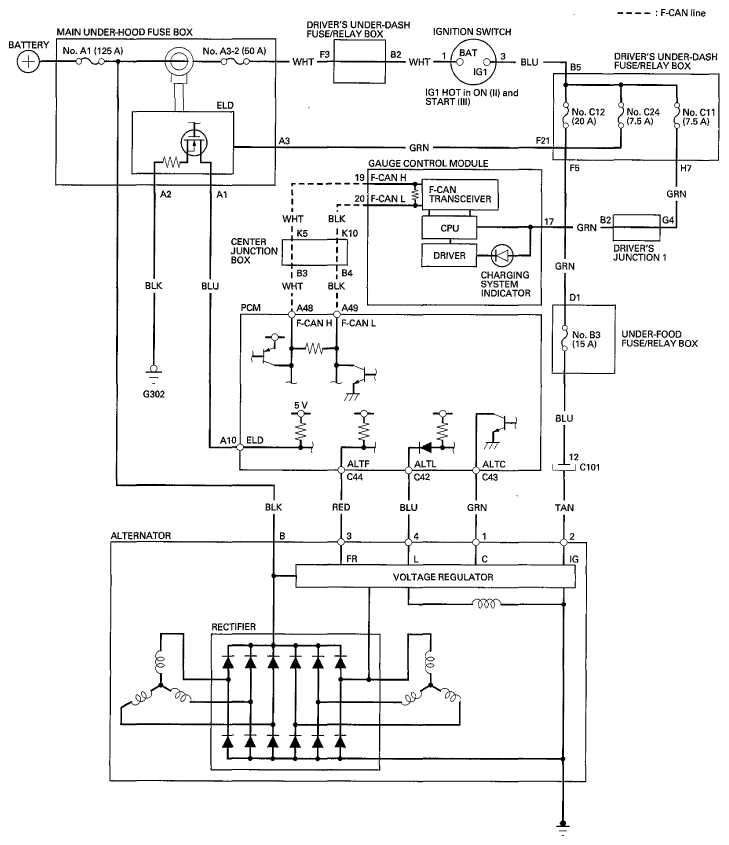

Fig 1: Charging System Circuit Diagram
