Component Location Index

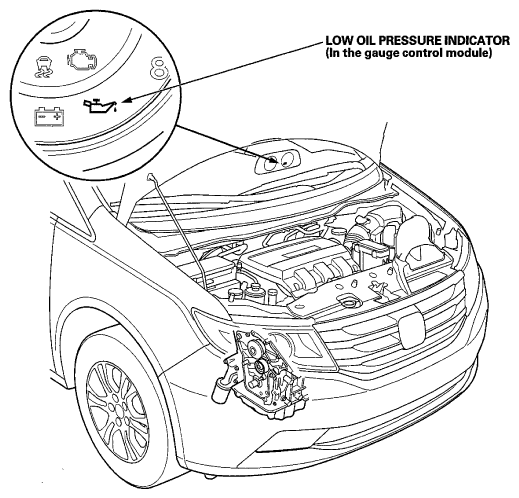

Fig 1: Identifying Low Oil Pressure Indicator (In Gauge Control Module) Replacement Component

Courtesy of AMERICAN HONDA MOTOR CO., INC.

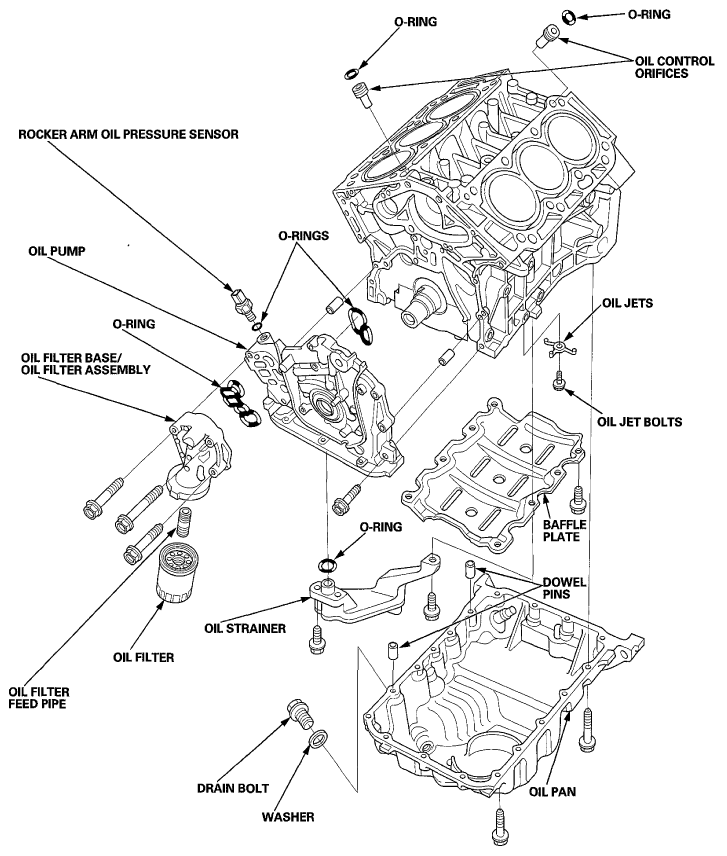

Fig 2: Identifying Engine Lubrication System Replacement Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
