PCM Manufacturer Identification

  1. Remove the cover (A).

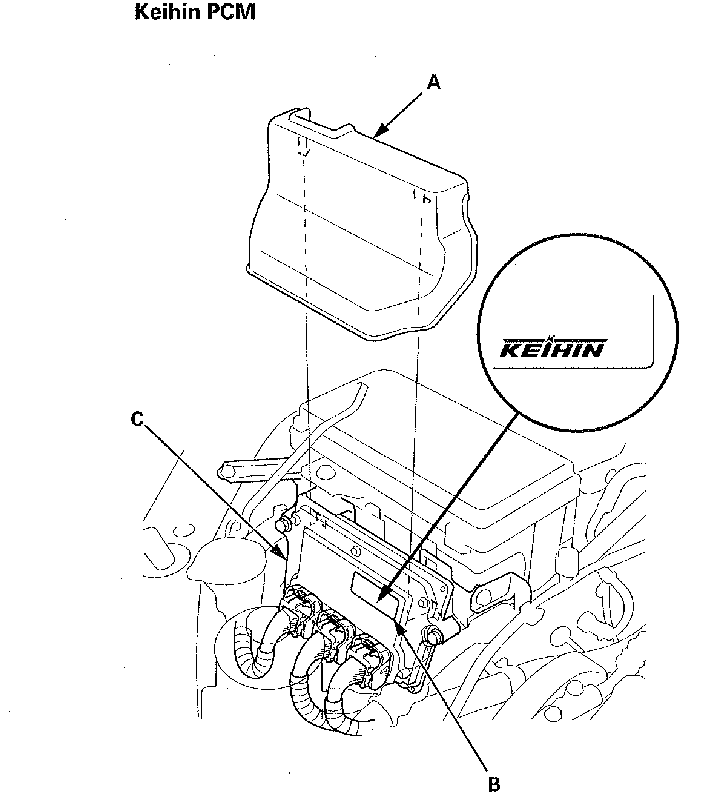

    Fig 1: Identifying Cover, Label And PCM (Keihin PCM)
    G00522666Courtesy of AMERICAN HONDA MOTOR CO., INC.

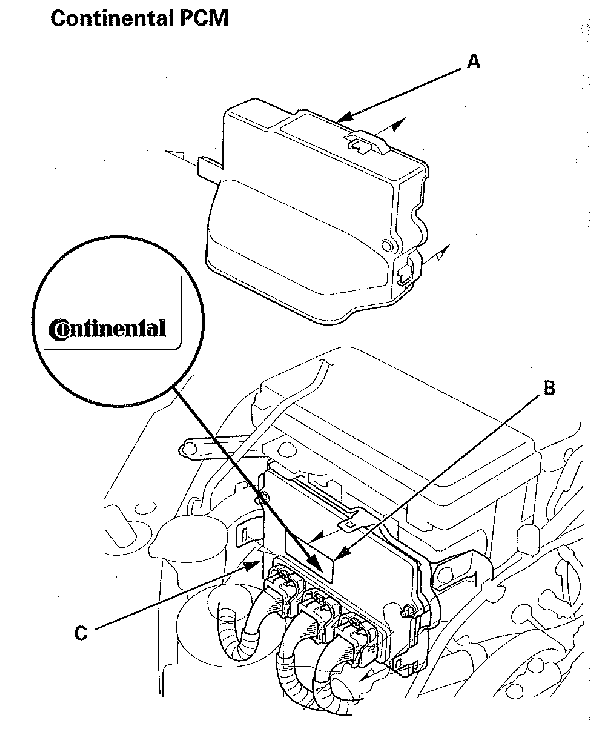

    Fig 2: Identifying Cover, Label And PCM (Continental PCM)
    G00522667Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Check the label (B) on the PCM (C) to determine if the PCM was manufactured by Keihin or Continental.
  3. After checking the label, install the cover.
