Component Location Index

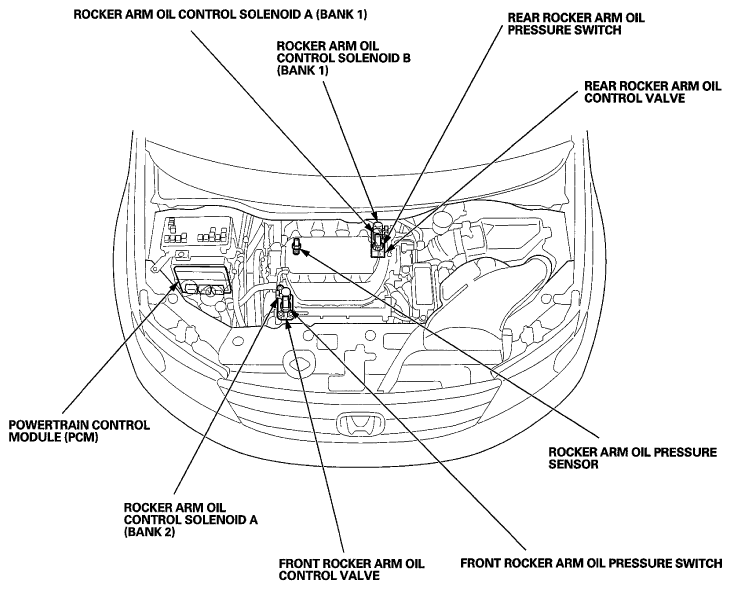

Fig 1: Variable Cylinder Management System (VCM) Replacement Component Location
G06966592Courtesy of AMERICAN HONDA MOTOR CO., INC.
