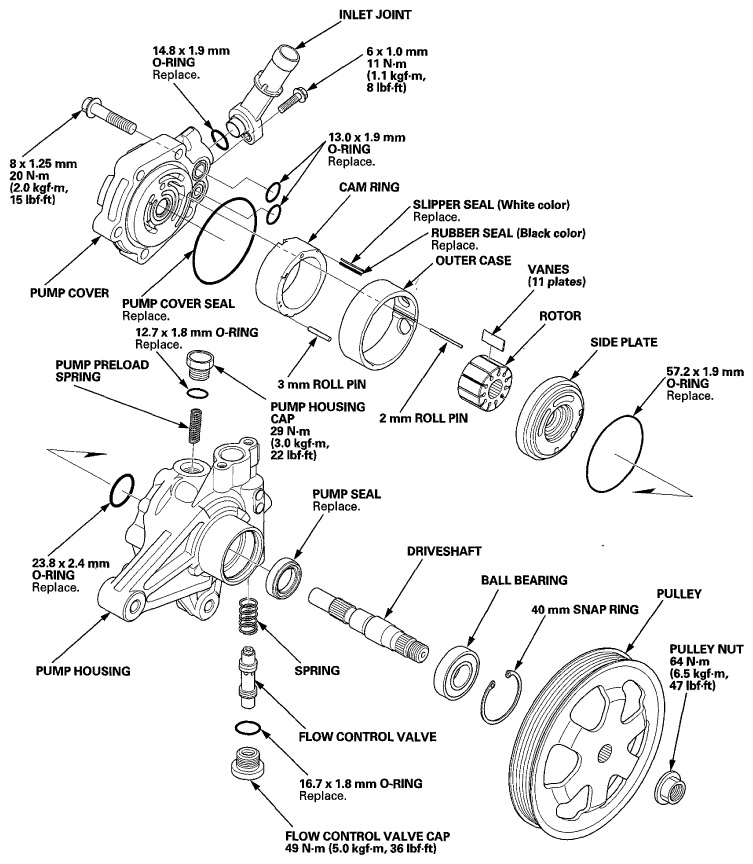

Exploded View: Notes
Special Tools Required
- Pulley Holder 07ZAB-S5A0100
- Driver Handle, 15 x 135L 07749-0010000
- Bearing Driver Attachment, 32 x 35 mm 07746-0010100
NOTE:
Refer to the EXPLODED VIEW as needed during the following procedure.
