Circuit Diagram - PCM A/T Control System

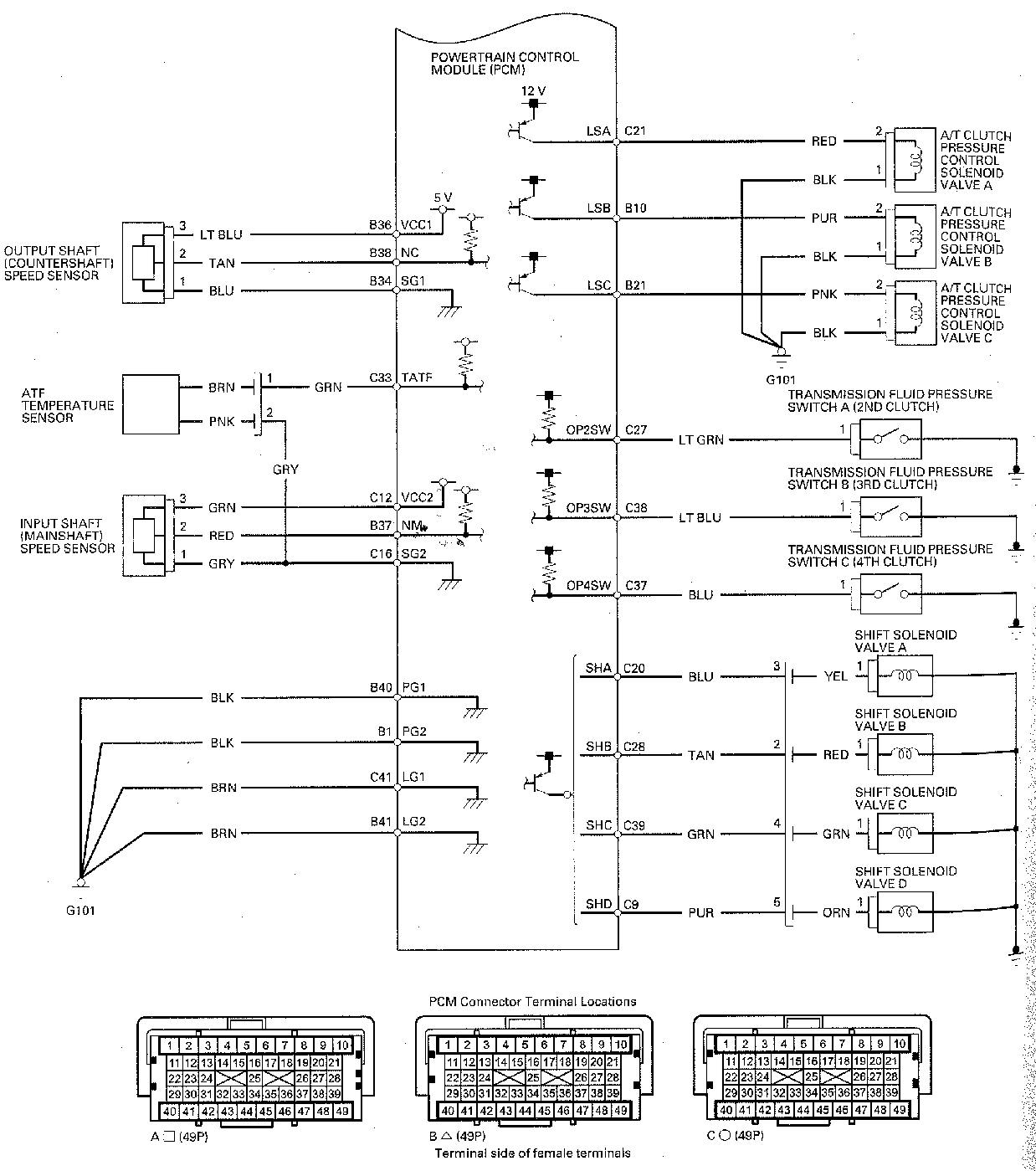

Fig 1: Keihin PCM A/T Control System - Circuit Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

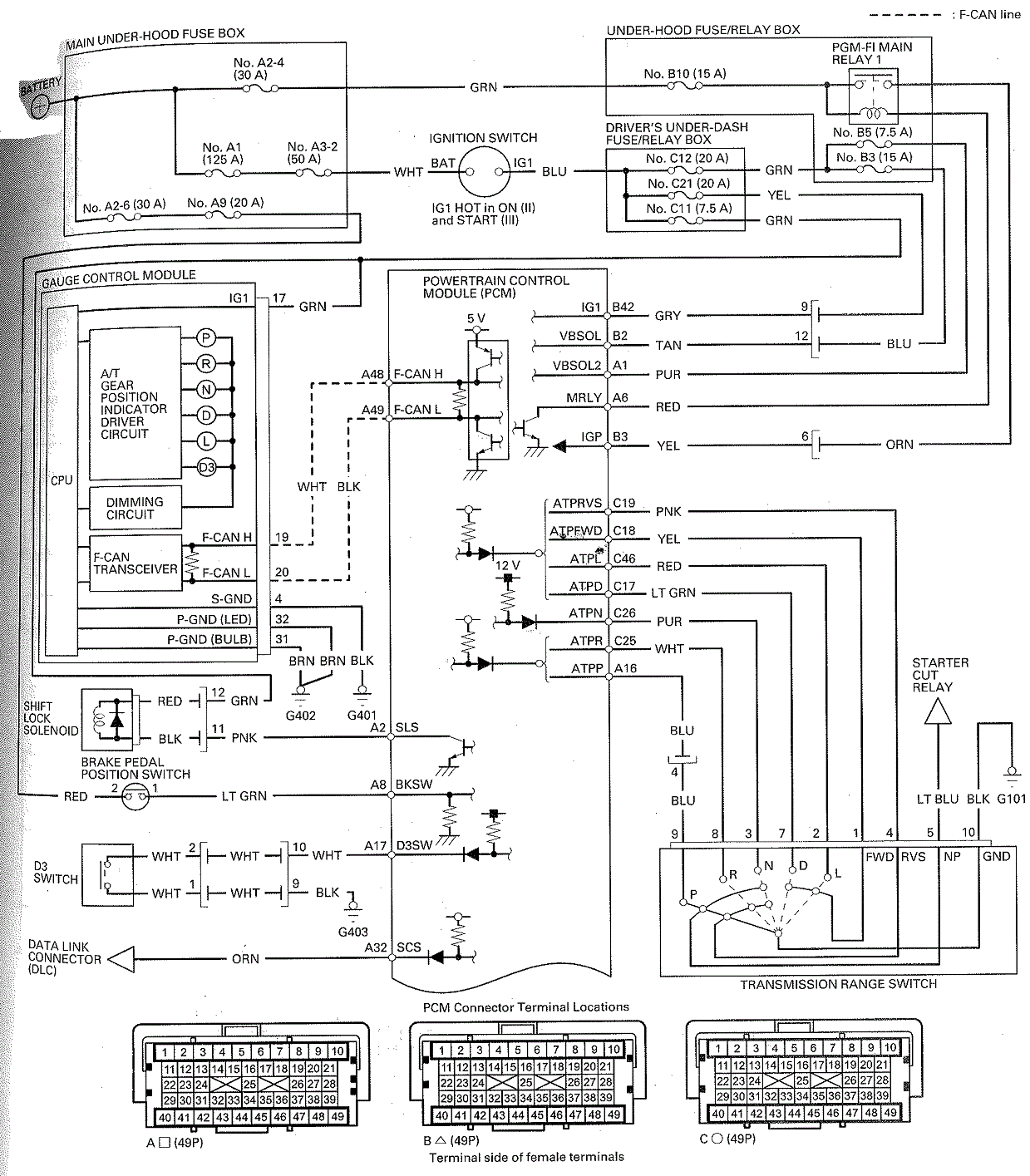

Fig 2: Keihin PCM A/T Control System - Circuit Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

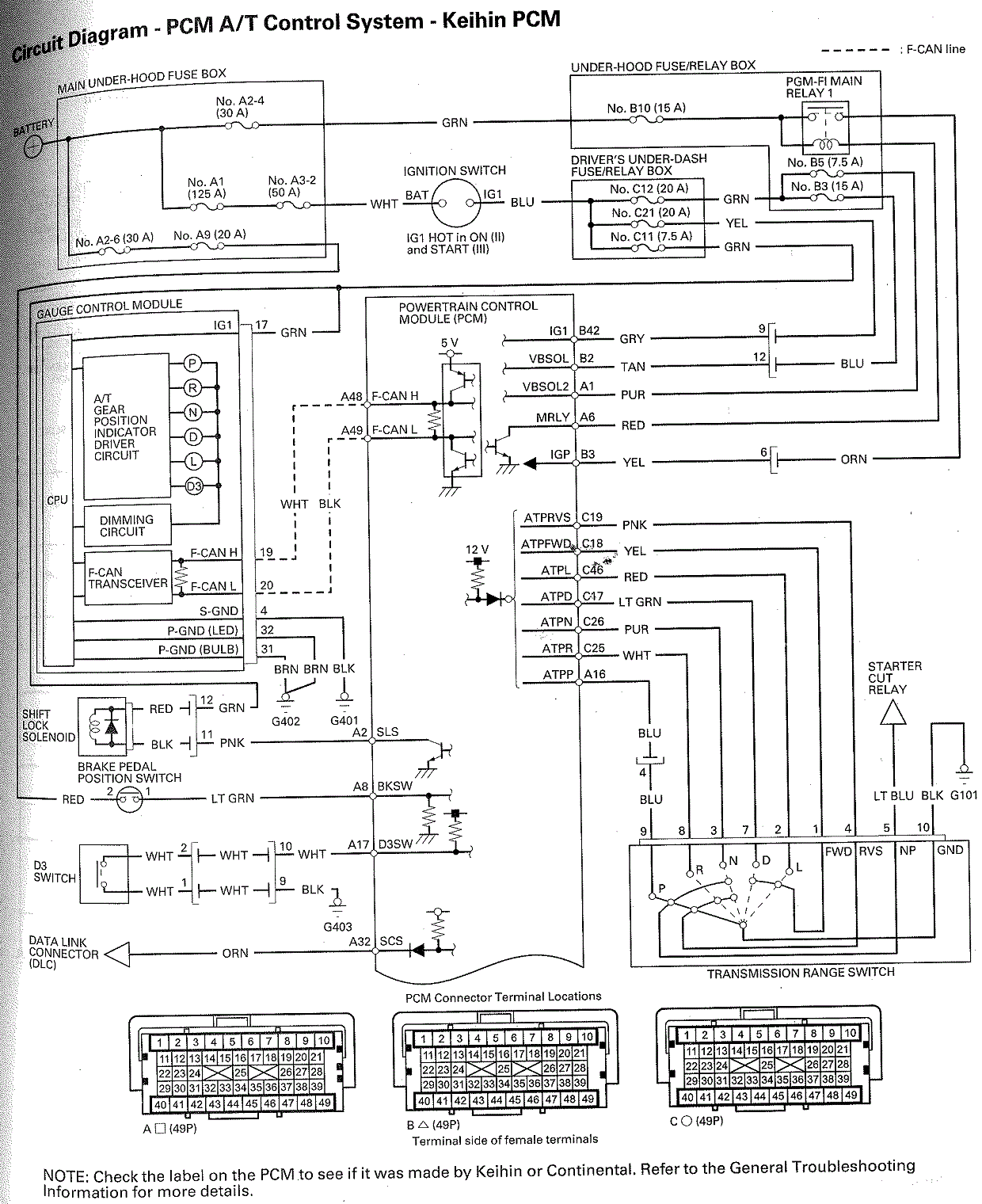

Fig 3: Continental PCM A/T Control System - Circuit Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

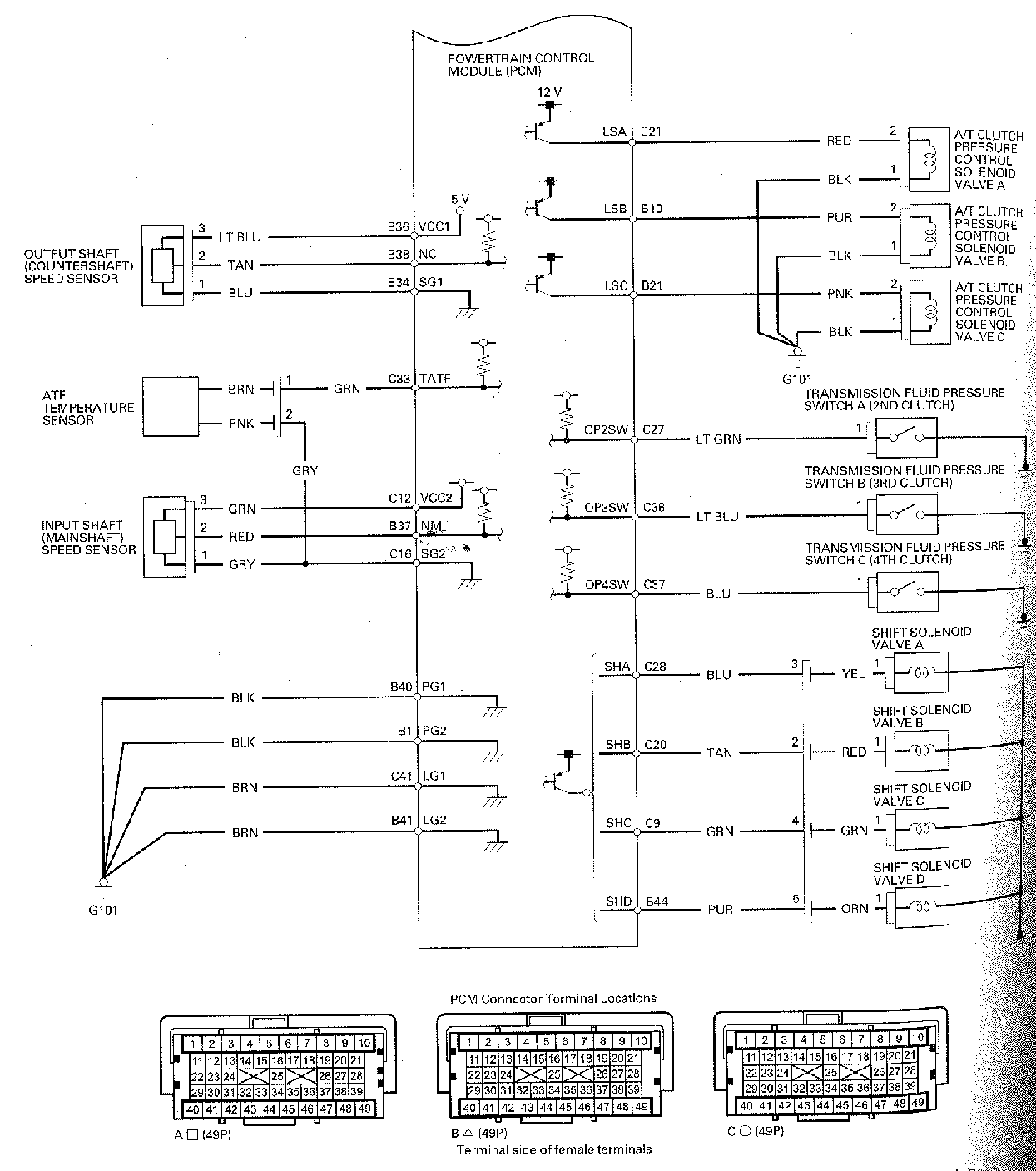

Fig 4: Continental PCM A/T Control System - Circuit Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to GENERAL TROUBLESHOOTING INFORMATION  for more details.
