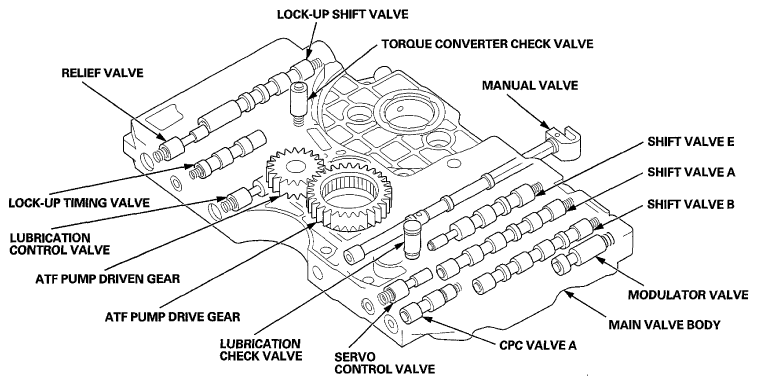

Main Valve Body
The main valve body contains the manual valve, the modulator valve, the torque converter check valve, shift valve A, shift valve B, shift valve E, CPC valve A, the servo control valve, the relief valve, the lock-up shift valve, the lock-up timing valve, the lubrication control valve, the lubrication check valve, the ATF pump drive gear, and the ATF pump driven gear. The primary function of the main valve body is to switch hydraulic fluid pressure on and off to the hydraulic control system.
