Ignition Switch/Steering Lock
›
Circuit Diagram
Circuit Diagram

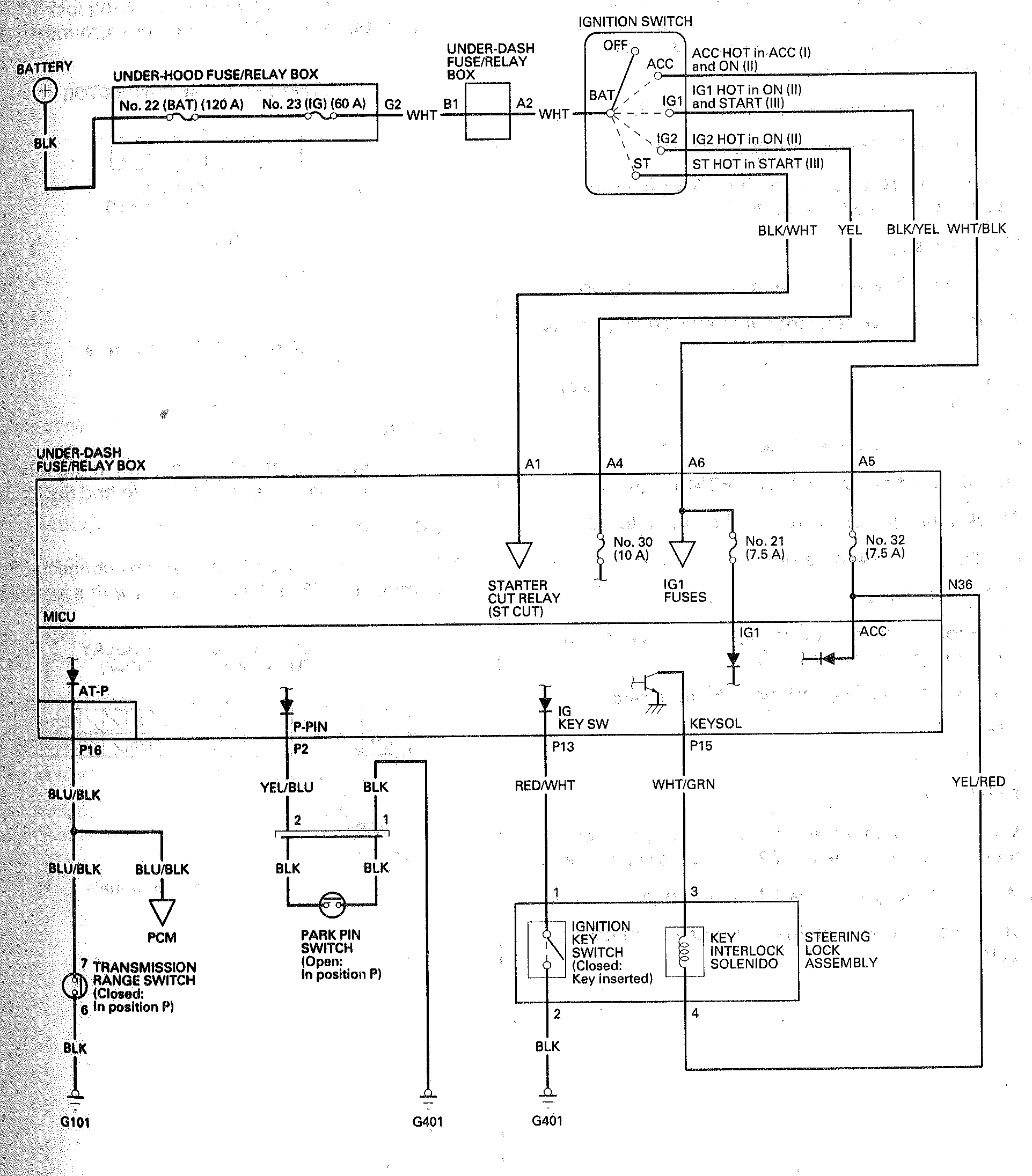

Fig 1: Ignition Switch - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
